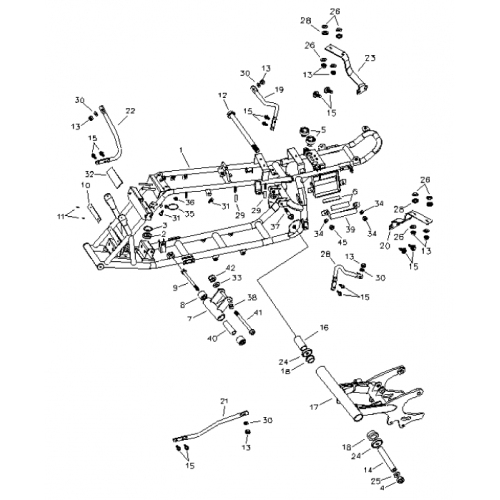

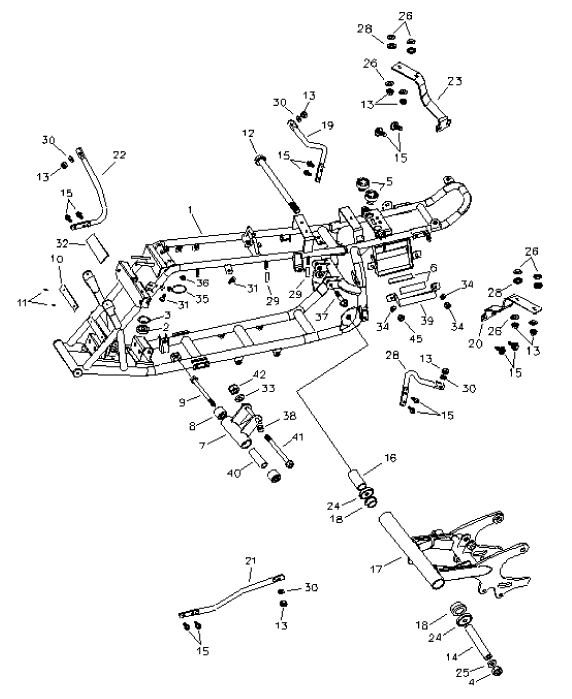

Frame (Bombardier Mini DS 90 4T)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Frame Comp
A50100238000
|
|||
| 2 |
Radial Ball Bearing (6002Zz)
A961006002ZZ
|
$10.98 | ||
| 3 |
Internal Circlip
A945123200R
|
$1.12 | ||
| 4 |
Nylon Nut M14
A9035014000
|
$1.39 | ||
| 5 |
Rubber
A77211145000
|
$2.68 | ||
| 6 |
Sponge Pad
A17505145000
|
$3.35 | ||
| 7 |
Engine Bracket
A50350175000
|
$36.56 | ||
| 8 |
Rubber Bushing
A96400102820
|
$4.18 | ||
| 9 |
Hexagonal Washer Face Bolt
A960001011014G
|
$7.54 | ||
| 10 |
Frame No Plate
DS90-4-FRAME NO PLATE
|
|||
| 11 |
Rivet
DS90-4-RIVET
|
|||
| 12 |
Hex. Washer Face Bolt M14 X 290
A960001429019
|
$16.74 | ||
| 13 |
Nylon Nut M6
A9035006000
|
|||
| 14 |
Swing Arm Spacer
A52104145000
|
$11.72 | ||
| 15 |
Hex. Bolt M6 X 14
A920000601410
|
|||
| 16 |
Rubber Sleeve
A52101145001
|
$8.37 | ||
| 17 |
...Swing Arm Sub Assy. (May Not Be Shown)
A52100145004
|
$97.33 | ||
| 18 |
Bush
A52103145000
|
$4.53 | ||
| 19 |
Rear Cover Lower Right Fixed Pole
A83401155000
|
$11.70 | ||
| 20 |
Rear Cover Up Left Fixed Plate
A83402166000
|
