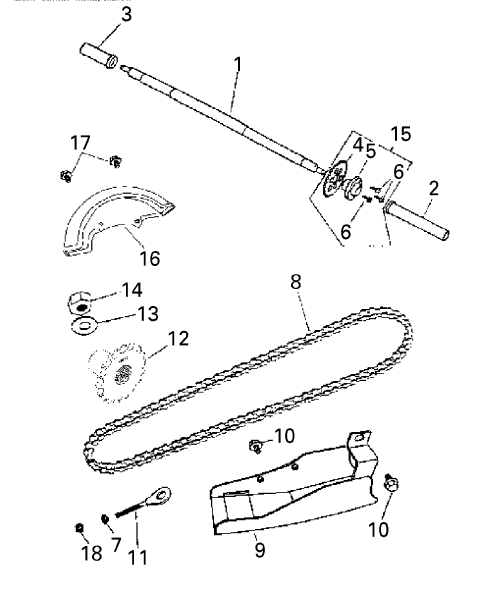

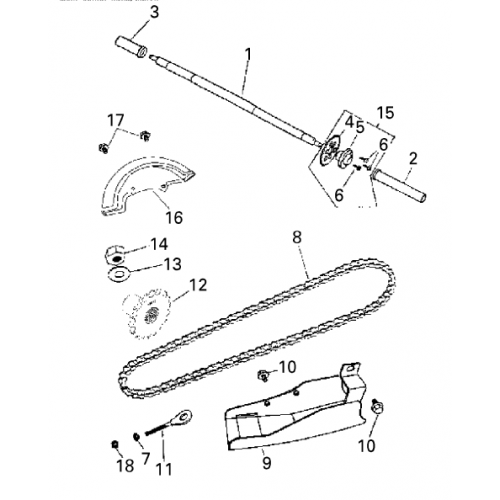

Drive System Rear (Bombardier Mini DS 90 4T)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Rear Wheel Axle
A42301145000
|
$159.11 | ||
| 2 |
Right Spacer Collar
A42620145001
|
$15.82 | ||
| 3 |
Left Spacer Collar
A42622145001
|
$14.83 | ||
| 4 |
Rear Sprocket (40T)
A41201146000
|
$40.34 | ||
| 5 |
Final Drive Flange
A42610145000
|
$25.04 | ||
| 6 |
Hex. Washer Face Bolt (10 X 20)
A960001002014
|
$3.01 | ||
| 7 |
Hex Nut M8
A9400108000
|
$0.70 | ||
| 8 |
Drive Chain
A40530149000
|
$36.56 | ||
| 9 |
Chain Protect Cover
A4051014500A
|
$36.56 | ||
| 10 |
Hex. Washer Face Bolt M8 X 12
A960000801212G
|
$1.00 | ||
| 11 |
Drive Chain Adjuster
A40543145000
|
$6.64 | ||
| 12 |
Drive Sprocket Ass'Y, 18T/ L=43
A23801175000
|
|||
| 13 |
Plain Washer
A941011629030
|
|||
| 14 |
Nylon Nut
A9035016000
|
|||
| 15 |
Rear Sprocket Ass'Y
A42600146000
|
$54.56 | ||
| 16 |
Rear Chain Cover
A40511175000
|
$10.98 | ||
| 17 |
Hexagonal Washer Face Bolt
A960000601410G
|
$1.00 | ||
| 18 |
Hex. Flanged Nut With Serration M8
A9405008000
|
$0.70 |
