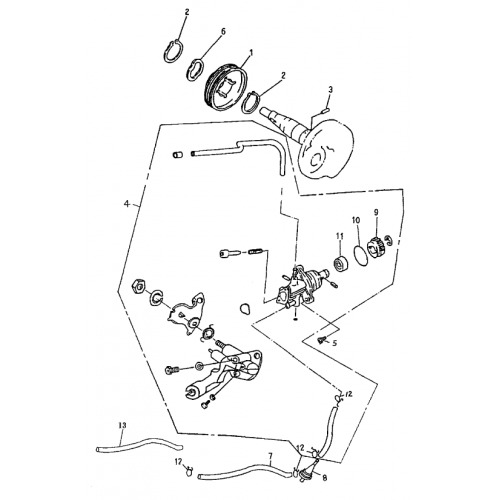

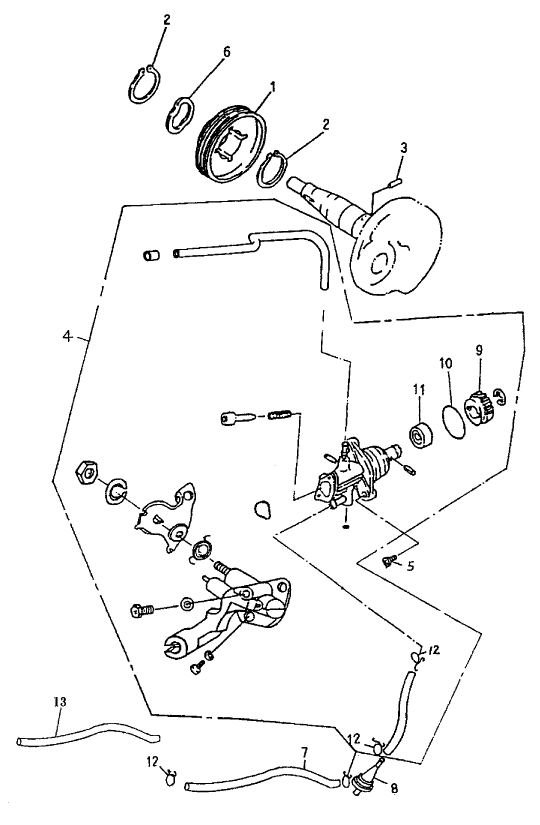

Oil Pump (Bombardier Mini DS 90 2T)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Pump Drive Gear
A15150104000
|
$5.13 | ||
| 2 |
External Circlip (Stw-19)
A945111900S
|
$0.70 | ||
| 3 |
Crankshaft Pin (3 X 11.8)
A96300030118
|
$0.56 | ||
| 4 |
Oil Pump Ass'Y
A1510011700B
|
$72.69 | ||
| 5 |
Pan Head Phillips Bolt M5 X 15
A9350005015
|
$1.74 | ||
| 6 |
Wave Washer (19.2 X 26 X 0.3)
A15151104000
|
$1.05 | ||
| 7 |
Oil Tube
A944000408490
|
$10.62 | ||
| 8 |
Oil Filter Cup
A17502101000
|
$4.18 | ||
| 9 |
Oil Pump Wormwheel (40T)
A15136110000
|
$11.72 | ||
| 10 |
Oil Ring
A91319110000
|
$6.28 | ||
| 11 |
Oil Seal
A9650009164
|
$6.59 | ||
| 12 |
Clip
A9451008000
|
$0.56 | ||
| 13 |
Tube Cover
A944020911400
|
$15.33 |
