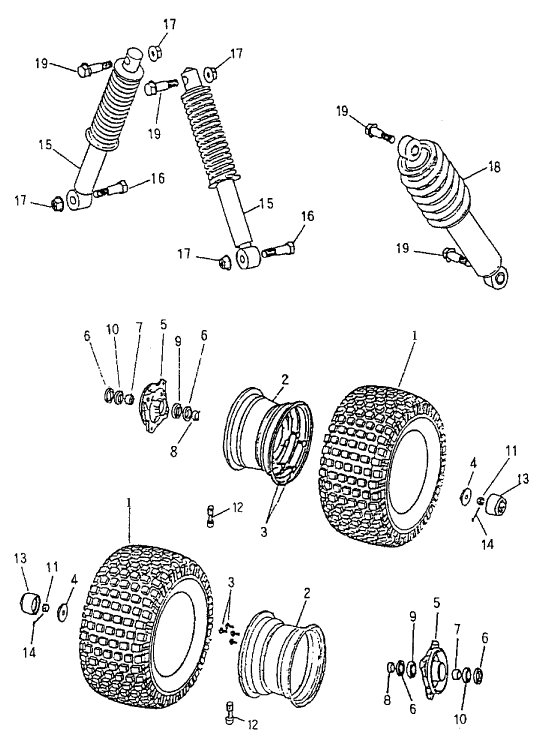

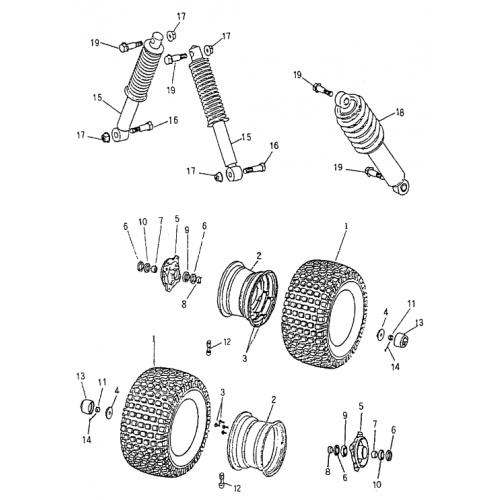

Front Wheel | Suspension (Bombardier Mini DS 90 2T)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Front/Rear Tire 20x7-8
A42711170000
|
$64.00 | ||
| 2 |
Rim Ass'Y
A42701146000
|
$76.92 | ||
| 3 |
Hex. Washer Face Bolt (10 X 20)
A960001002014
|
$3.01 | ||
| 4 |
Plain Washer (12 X 40 X 4.5)
A941011240045
|
$2.34 | ||
| 5 |
Front Brake Drum
A4271014500B
|
$66.59 | ||
| 6 |
Oil Seal (22 X 35 X 7)
A9650022357
|
$4.18 | ||
| 7 |
Spacer Tube
A44620145000
|
$6.03 | ||
| 8 |
Front Coller
A44311145000
|
$6.04 | ||
| 9 |
Radial Ball Bearing (6002Z)
A961006002Z
|
$10.98 | ||
| 10 |
Radial Ball Bearing (6003Z)
A961006003Z
|
$11.72 | ||
| 11 |
Nut,Cross Threar (12 Mm)
A940511200017
|
$3.77 | ||
| 12 |
Air Nozzle
A42616145000
|
$4.18 | ||
| 13 |
Rubber Cover
A4281414500A
|
$5.27 | ||
| 14 |
Cotter Pin (3 X 32)
A9420130320
|
$0.42 | ||
| 15 |
Front Cushion 10% Softer Spring
A5140014500C
|
$60.37 | ||
| 16 |
Hex Bolt M10 X 40
A920001004014G
|
$1.92 | ||
| 17 |
Nylon Nut M10
A9035010000G
|
$0.56 | ||
| 18 |
Rear Cushion 14Kg Tensile Compress
A52400166000
|
|||
| 19 |
Hex. Washer Face Bolt M10 X 40
A960001004014G
|
$4.02 |
