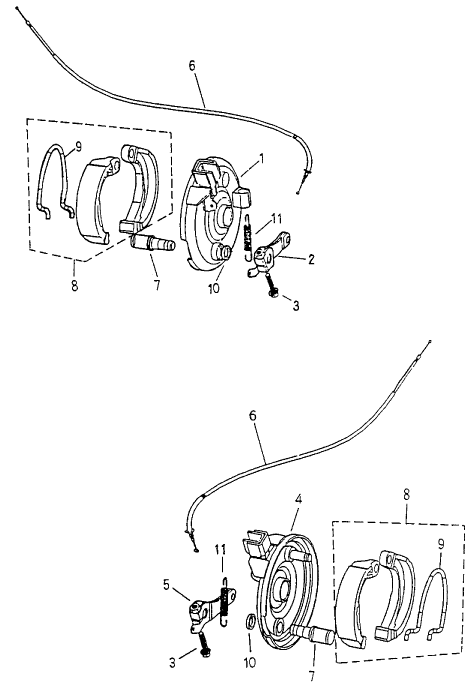

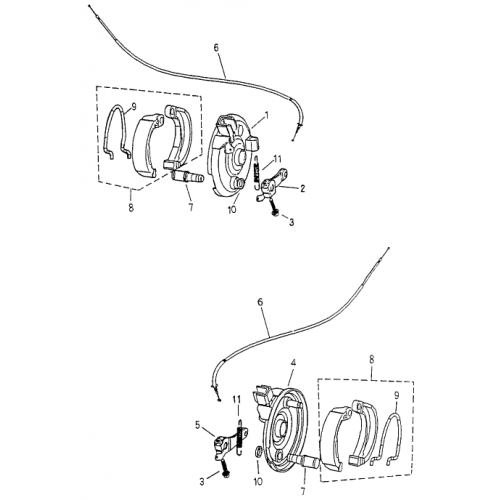

Front Brake (Bombardier Mini DS 90 2T)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Front Left Brake Panel
A45010145000
|
$26.25 | ||
| 2 |
Front Left Brake Arm
A45410145000
|
$11.86 | ||
| 3 |
Hex. Washer Face Bolt M5 X 24
A960000502408
|
$2.23 | ||
| 4 |
Front Right Brake Panel
A45020145000
|
$23.72 | ||
| 5 |
Front Right Brake Arm
A45310145000
|
$11.86 | ||
| 6 |
Front Brake Cable
A45450145000
|
|||
| 7 |
Front Brake Cam Shaft
A45141145000
|
$10.98 | ||
| 8 |
Front Brake Shoe Comp
A45120145001
|
$30.25 | ||
| 9 |
Strain Spring
A45133145000
|
|||
| 10 |
Oil Ring
A91313104000
|
|||
| 11 |
Return Spring
A45437145000
|
