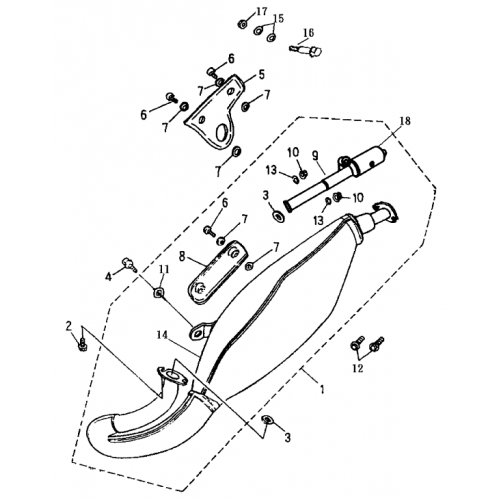

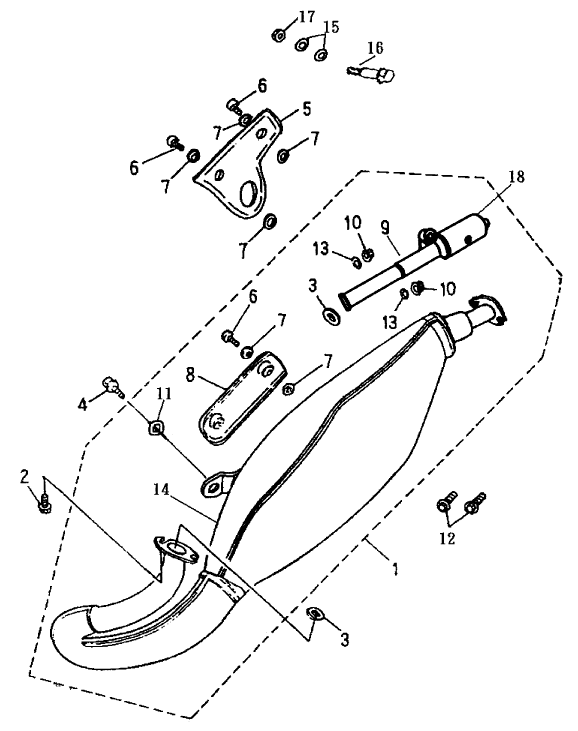

Exhaust (Bombardier Mini DS 90 2T)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Exhaust Pipe Ass'Y
A1830014600D
|
$199.22 | ||
| 2 |
Hex. Head Phillips Bolt M6 X 18
A920010601810
|
$0.84 | ||
| 3 |
Exhaust Pipe Gasket
A18291101000
|
|||
| 4 |
Hex. Washer Face Bolt M8 X 25
A960000802512
|
$2.01 | ||
| 5 |
Insolator
A18301145000
|
$10.98 | ||
| 6 |
Hex. Washer Face Bolt M6 X 12
A960000601208L
|
$1.34 | ||
| 7 |
Muffler Shroud Packing
A18292104000
|
$0.67 | ||
| 8 |
Muffler Shroud
A18318145000
|
$12.19 | ||
| 9 |
Tail Of Muffler
A1832114500C
|
|||
| 10 |
Hex. Flanged Nut With Serration M6
233261414
|
|||
| 11 |
Spring Washer
A941110814520
|
$0.50 | ||
| 12 |
Hex. Washer Face Bolt M6 X 25
A960000602510
|
$0.84 | ||
| 13 |
Plain Washer
A941010614020
|
$0.49 | ||
| 14 |
Front Exhaust Pipe
A1831114600A
|
|||
| 15 |
Plain Washer
A941051022025G
|
$2.09 | ||
| 16 |
Hex. Washer Face Bolt M10 X 48
A960001004814G
|
$3.49 | ||
| 17 |
Nylon Nut M10
A9035010000G
|
$0.56 | ||
| 18 |
Spark Arrester
A18330145000
|
