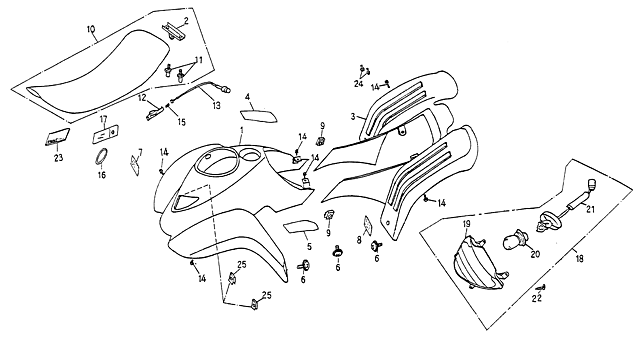

Body Cover, Seat (Blazer 90cc ATV)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 0 |
Owner's Manual
50122-145-000D
|
|||
| 1 |
Front Cover
64301-145-000
|
|||
| 2 |
Seat Bracket
77201-145-000
|
$18.98 | ||
| 3 |
Rear Cover
83400-145-000
|
|||
| 4 |
Right Side Cover Sticker
87730-145-000
|
|||
| 5 |
Left Side Cover Sticker
87731-145-000
|
|||
| 6 |
Pan Head Phillips Bolt M6 X 20
93800-06020S
|
$1.67 | ||
| 7 |
Sticker, Warning (Y-12)
87705-145-000
|
|||
| 8 |
Sticker, Warning
87704-145-000
|
|||
| 9 |
U Plate Nut, 6mm
90344-0600A
|
$2.68 | ||
| 10 |
Seat Ass'Y
77200-145-000
|
$132.37 | ||
| 11 |
Seat Bolt
77203-145-000
|
$3.91 | ||
| 12 |
Seat Lock Ass'Y
77230-145-001
|
$10.98 | ||
| 13 |
Seat Release Cable(Rev.1)
77212-145-000
|
$8.79 | ||
| 14 |
Ladder Bolt, 6*14*3
90111-06014-18G
|
$1.67 | ||
| 15 |
Reset Spring, 1*25
77213-145-000
|
$1.51 | ||
| 16 |
Rubber Strip, 50.1*5.3
91350-145-000
|
$2.01 | ||
| 17 |
Tool Bag
50120-101-000
|
$8.05 | ||
| 18 |
Head Light Assembly (E-Mark)
33100-125-00A
|
$54.57 | ||
| 19 |
Head Light Cover (E-Mark)
33110-125-00A
|
$35.02 |
