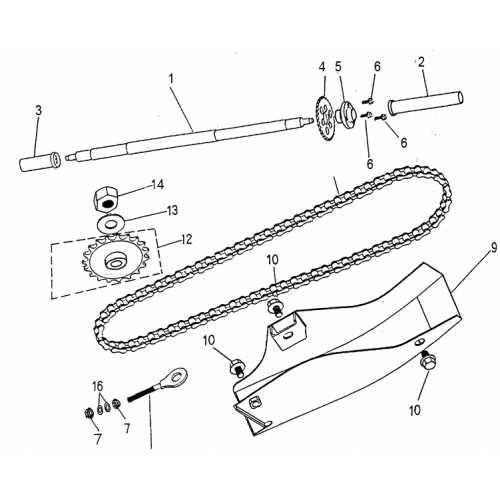

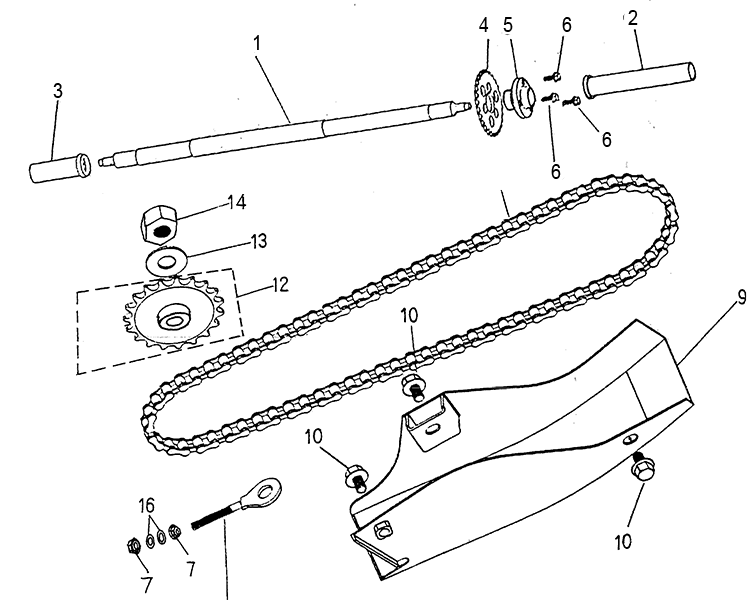

Rear Wheel Axle, Chain (Blazer 50cc ATV)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Rear Wheel Axle, 711mm
42301-145-000
|
$159.11 | ||
| 2 |
Right Spacer Collar
42620-145-001
|
$15.82 | ||
| 3 |
Left Spacer Collar
42622-145-001
|
$14.83 | ||
| 4 |
Rear Sprocket 28T
41201-145-000
|
$40.43 | ||
| 5 |
Final Drive Flange(Rev.1
42610-145-000
|
$25.04 | ||
| 6 |
Hex Washer Face Bolt, 8*20
96000-08020-12
|
$1.67 | ||
| 7 |
Hex Flange Nut, 6mm
94050-06000
|
$0.84 | ||
| 8 |
Drive Chain, 428*76
40530-145-000
|
$36.56 | ||
| 9 |
Chain Protect Cover
40510-145-001
|
$36.56 | ||
| 10 |
Hex Washer Face Bolt, 8*12
96000-08012-12
|
$2.09 | ||
| 11 |
Drive Chain Adjuster, 8MM
40543-145-000
|
$6.69 | ||
| 12 |
Drive Sprocket Ass'Y, 428-19T
23801-145-000
|
$37.99 | ||
| 13 |
Plain Washer, 15*29*3
94105-1529030G
|
$2.85 | ||
| 14 |
Nylon Nut, 14mm
90350-14000
|
$1.67 | ||
| 16 |
Plain Washer, 6*14*2
94101-0614020
|
$0.59 |
