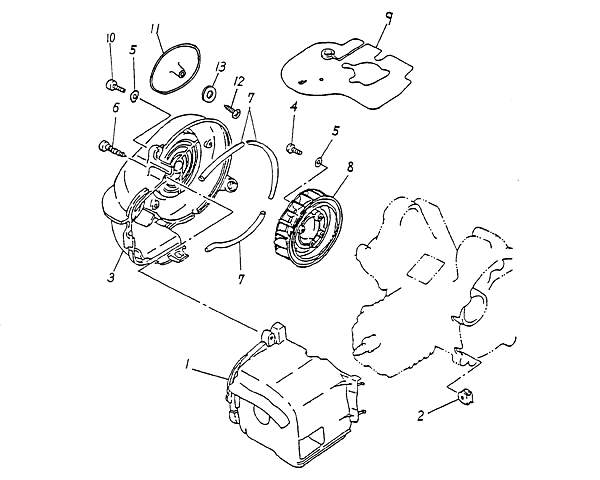

Fan, Air Shroud (Blazer 50cc ATV)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Cylinder Air Shroud
19620-116-000
|
|||
| 2 |
Grommet
83552-116-000
|
|||
| 3 |
Generator Cover
19610-116-000
|
$22.99 | ||
| 4 |
Hex Socket Bolt, 6*15
91000-06015B
|
$1.14 | ||
| 5 |
Plain Washer, 6*13*1
94101-0613010B
|
$0.50 | ||
| 6 |
Tapping Screw Truss Head Phillips, 5*40
93903-05040K
|
$0.59 | ||
| 7 |
Damper
17632-116-000
|
|||
| 8 |
Fan
19510-116-000
|
|||
| 9 |
Deflector
55122-116-000
|
|||
| 10 |
Hex Socket Bolt, 6*20
91000-06020B
|
$0.67 | ||
| 11 |
Generator Outter Cover
19612-145-000
|
|||
| 12 |
Tapping Screw Truss Head Phillps, 5*16
93903-05016K
|
$0.72 | ||
| 13 |
Plain Washer, 6*18*1
94101-0618010
|
$0.50 |
