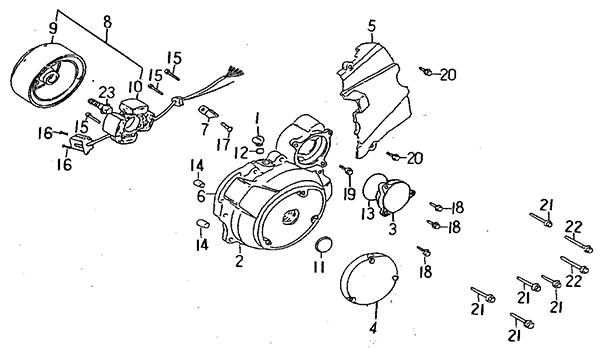

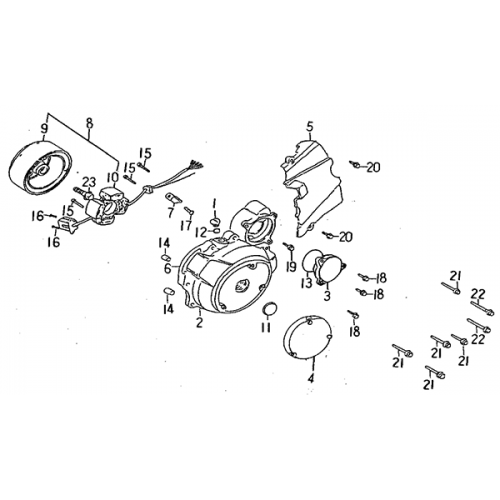

Left Crankcase Cover (Barossa ATV 170)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
CAP, A.C.G.
12655-ROA-00
|
$5.98 $4.49 | ||
| 2 |
COVER, L CRANKCASE
15411-CHP-00
|
$57.49 $43.12 | ||
| 3 |
COVER, REDUCTION GEAR
15416-CHP-00
|
$12.54 $9.40 | ||
| 4 |
CAP, L CRANKSHAFT
15417-CHP-00
|
$12.54 $9.40 | ||
| 5 |
COVER, L REAR CRANKCASE
15421-CHP-00
|
$23.85 $17.89 | ||
| 6 |
GASKET, L CRANKCASE COVER
15481-CHP-00
|
$6.96 $5.22 | ||
| 7 |
CLAMPER, WIRE HARNESS
15541-CHP-00
|
$1.38 $1.04 | ||
| 8 |
GENERATOR ASS'Y
35500-CHP-00
|
$147.84 $110.88 | ||
| 9 |
FLYWHEEL COMP
35550-CHP-00
|
$57.49 $43.12 | ||
| 10 |
STATOR COMP
35560-CHP-00
|
|||
| 11 |
O-RING 2.4*27.4
93210-24274
|
$1.39 $1.05 | ||
| 12 |
O-RING 2.5*13.8
93210-25138
|
$1.39 $1.05 | ||
| 13 |
O-RING 3.0*63
93210-30630
|
$2.09 $1.57 | ||
| 14 |
PIN DOWEL 10*14
94410-10014
|
$1.39 $1.05 | ||
| 15 |
BOLT, HEXAGON 5*25
96210-05025-B
|
$0.56 $0.42 | ||
| 16 |
SCREW, PAN HEAD 5*16
96310-05016-B
|
$0.68 $0.51 | ||
| 17 |
BOLT, FLANGE 6*12
96411-06012-B
|
$1.05 $0.78 | ||
| 18 |
BOLT, FLANGE 6*20
96411-06020-B
|
$1.05 $0.78 | ||
| 19 |
BOLT, FLANGE 6*25
96411-06025-B
|
$1.05 $0.78 | ||
| 20 |
BOLT, FLANGE 6*28
96411-06028-B
|
$1.05 $0.78 |
