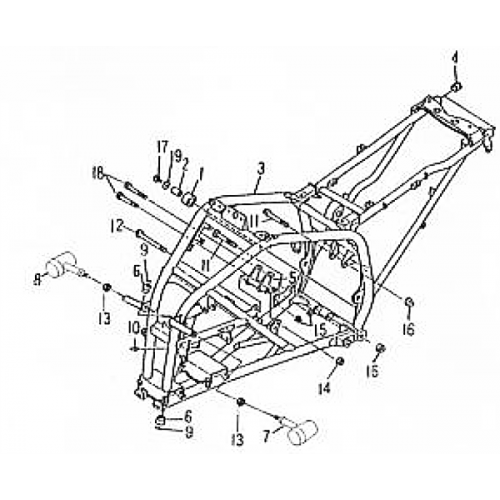

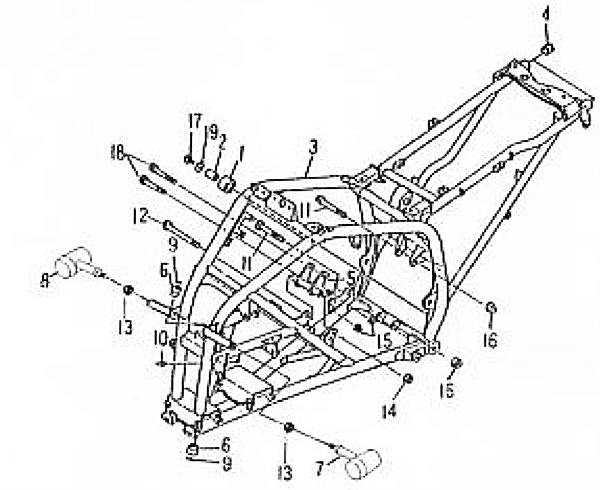

Frame (Barossa ATV 170)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
TENSIONER
32167-RAM-00
|
$6.97 $5.23 | ||
| 2 |
BUSH
32168-RAM-00
|
$2.61 $1.96 | ||
| 3 |
Frame comp
41110-RAM-02
|
$516.30 $387.22 | ||
| 4 |
PLUG, SPECIAL SHAPE
41154-RAM-00
|
$1.39 $1.05 | ||
| 5 |
ENGINE HANGER F
41181-RAM-00
|
$18.83 $14.12 | ||
| 6 |
BUSH, SOLID
46412-RAM-00
|
$4.18 $3.14 | ||
| 7 |
WINKER ASS'Y,L REAR
55750-RAM-00
|
$23.85 $17.89 | ||
| 8 |
WINKER ASS'Y,R REAR
55760-RAM-00
|
$23.85 $17.89 | ||
| 9 |
O-RING 2.4*14.8
93210-24148
|
$1.39 $1.05 | ||
| 10 |
NIPPLE, GREASE M6*P1.0
94340-06010-B
|
$0.70 $0.52 | ||
| 11 |
BOLT,FLANGE
94610-10113-B
|
$4.18 $3.14 | ||
| 12 |
BOLT, FLANGE
94610-12140-B
|
$4.18 $3.14 | ||
| 13 |
NUT,HEXAGON
95201-101408-B
|
$0.68 $0.51 | ||
| 14 |
NUT, NYLON
95311-121912-B
|
$2.09 $1.57 | ||
| 15 |
NUT, FLANGE
95401-081208-B
|
$0.82 $0.62 | ||
| 16 |
NUT, FLANGE
95401-101409-B
|
$0.96 $0.72 | ||
| 17 |
BOLT, FLANGE
96414-08012-B
|
$1.26 $0.94 | ||
| 18 |
BOLT, FLANGE
96414-08088-B
|
$2.79 $2.09 | ||
| 19 |
WASHER, PLATE 8.7*24*2.0
97201-082420-B
|
$0.70 $0.52 |
