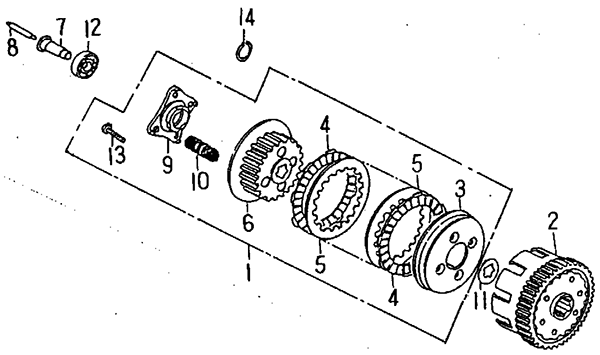

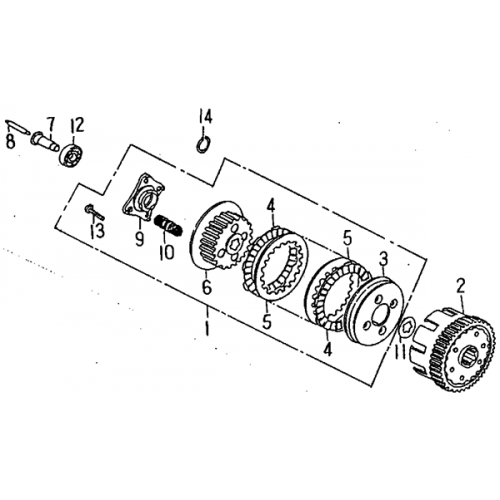

Clutch (Barossa ATV 170)

Change Assembly

Clutch (Barossa ATV 170)
# Product Code: Product Name Req'd Price:
1 25602-CHP-00 Clutch comp $153.25
2 25611-CHP-00 OUTER COMP, CLUTCH $34.82
3 25621-CHP-00 PLATE, CLUTCH PRESSURE $12.54
4 25622-CHP-00 DISK, CLUTCH FRICTION $10.35
5 25623-CHP-00 PLATE, CLUTCH $7.32
6 25661-CHP-00 CENTER, CLUTCH $46.91
7 25664-CHP-00 PIN, CLUTCH LIFTER GUIDE $9.48
8 25665-CHP-00 ROD, CLUTCH LIFTER $5.56
9 25670-CHP-00 PLATE, CLUTCH LIFTER $11.14
10 25680-CHP-00 SPRING, CLUTCH $4.16
11 25688-CHP-00 WASHER, SPLINE $2.55
12 93320-122808 BEARING, RADIAL BALL 6001 $11.16
13 96414-06025-C BOLT, FLANGE 6*25 $1.05
14 97010-20012 CIRCLUP 20MM
Showing 1 to 14 of 14 (1 Pages)
