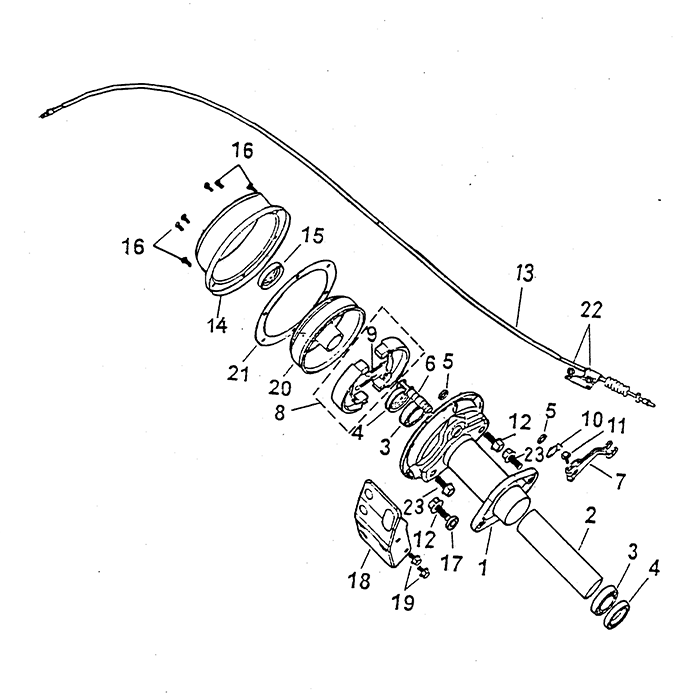

Rear Brake
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Rear Brake Panel
43101-145-000
|
$0.00 | ||
| 2 |
Rear Brake Panel Spacer
42313-145-000
|
$11.72 | ||
| 3 |
Radial Ball Bearing, 6006ZZ
96100-6006ZZ
|
|||
| 4 |
Oil Seal, 35*55*11
96500-355511
|
|||
| 5 |
Oil Seal, 14*20*4
96500-14204
|
|||
| 6 |
Rear Brake Cam Shaft(Rev.1)
43141-145-000
|
$11.70 | ||
| 7 |
Rear Brake Arm
43410-145-000
|
$12.45 | ||
| 8 |
Rear Brake Shoe Comp.(Rev.1)
43120-145-000
|
$34.72 | ||
| 9 |
Shoe Strain Spring, 1.6*36
43151-145-000
|
|||
| 10 |
Return Spring
42617-145-000
|
$2.01 | ||
| 11 |
Hex Washer Face Bolt, 6*30
96000-06030-10
|
$1.33 | ||
| 12 |
Hex Washer Face Bolt, 12*27
96000-12027-17
|
$5.13 | ||
| 13 |
Rear Brake Cable
43450-145-000
|
$44.99 | ||
| 14 |
Rear Drum Cover(Rev.1)
42612-145-000
|
$50.43 | ||
| 15 |
Oil Seal, 32*52*11
96500-325211
|
|||
| 16 |
Hex Washer Face Bolt, 6*12
96000-06012-10
|
$1.34 | ||
| 17 |
Plain Washer, 13*21*4
94101-1321040
|
$2.01 | ||
| 18 |
Right Rear Brake Cover
42613-145-000
|
$11.86 | ||
| 19 |
Hex Washer Face Bolt, 8*12
96000-08012-12
|
$2.09 | ||
| 20 |
Rear Drum(Rev.2)
42601-145-000
|
$85.01 |
