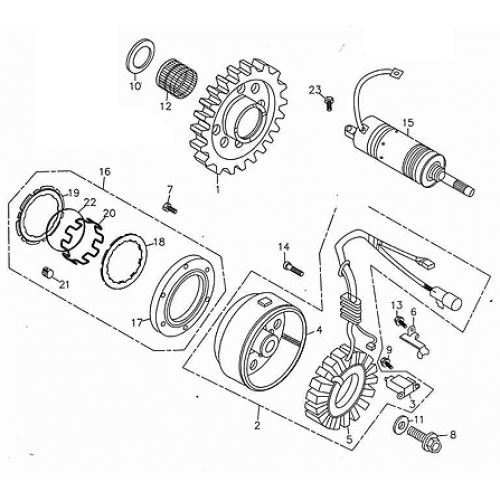

Generator / Starting Motor (Adly ATV 300S Interceptor)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Starter Driven Gear Comp, 70T
28110-169-001
|
$92.40 | ||
| 2 |
Generator Ass'Y, 250
31100-169-001
|
$252.70 | ||
| 3 |
Pulse Alternator Comp.
31124-169-000
|
|||
| 4 |
Generator Flywheel
31110-169-000
|
$133.71 | ||
| 5 |
Stator Comp
31120-169-001
|
$172.48 | ||
| 6 |
Wire Clamp
32961-169-000
|
$3.68 | ||
| 7 |
Star Socket Bolt, 6*20
91100-06020K
|
$2.21 | ||
| 8 |
Hex Flange Bolt, 12*45
96000-12045-17G
|
$7.61 | ||
| 9 |
Hex Socket Bolt, 5*14
91000-05014K
|
$1.09 | ||
| 10 |
Plain Washer, 26.5*40*2.5
94105-2740025
|
|||
| 11 |
Plain Washer, 12.5*30*4.2
94101-1330042C
|
$3.60 | ||
| 12 |
Needle Bearing, 26*31*24
96200-263124
|
$20.10 | ||
| 13 |
Hex Flange Bolt, 6*12
96000-06012-10B
|
$1.34 | ||
| 14 |
Hex Socket Bolt, 6*30
91000-06030B
|
$3.68 | ||
| 15 |
Starting Motor Ass'Y
31200-169-000
|
$225.96 | ||
| 16 |
Starter Clutch Ass'Y
28410-169-001
|
|||
| 17 |
Starting Clutch Outer Comp.
28125-169-001
|
|||
| 18 |
Upper Starter Plate
28126-169-000
|
|||
| 19 |
Lower Starter Plate
28127-169-000
|
|||
| 20 |
Separator Ring
28128-169-000
|
