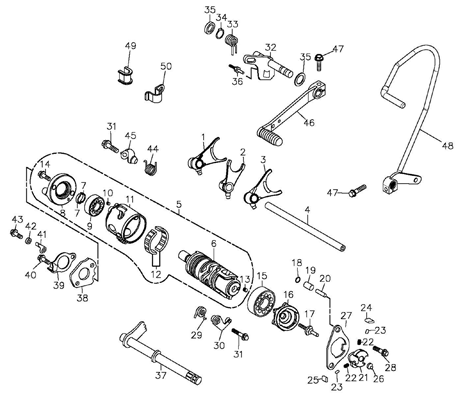

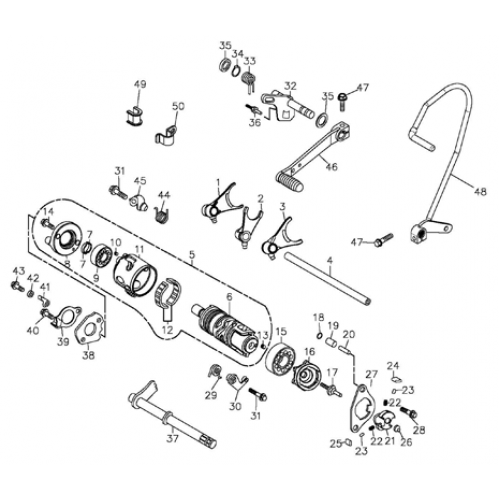

Gear Shift (Adly ATV 300S Interceptor)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
R.Gear Shift Fork
24211-169-000
|
$36.56 | ||
| 2 |
Center Gear Shift Fork
24231-169-000
|
$36.56 | ||
| 3 |
L.Gear Shift Fork
24212-169-000
|
$36.56 | ||
| 4 |
Shift Fork Guide Shaft
24241-169-000
|
$12.65 | ||
| 5 |
Shift Drum Ass'Y
24300-169-000
|
$200.56 | ||
| 6 |
Shift Drum
24301-169-000
|
$68.99 | ||
| 7 |
Separate Ring
24302-169-000
|
$4.18 | ||
| 8 |
Bearing Holder
24304-169-000
|
$32.69 | ||
| 9 |
Radial Ball Bearing, 6902(NTN)
96100-69020
|
$23.72 | ||
| 10 |
Roller, 3*8.5
96220-30085
|
$1.34 | ||
| 11 |
Reverse Gear Shift Drum
24303-169-000
|
$64.06 | ||
| 12 |
Needle Bearing, 37*43*13
96250-374313
|
$34.27 | ||
| 13 |
Coller, 4*8
96220-40080
|
$4.69 | ||
| 14 |
Hex Socket Bolt, 6*14
91000-06014K
|
$1.09 | ||
| 15 |
Radial Ball Bearing, 16005(KOYO)
96100-16005
|
$37.82 | ||
| 16 |
Shift Drum Center
24411-169-000
|
$13.84 | ||
| 17 |
Shifter Pin
24412-169-000
|
$7.32 | ||
| 18 |
Bearing Holder Plate
24420-169-000
|
$1.14 | ||
| 19 |
Bushing, 8.5*13.7*17.2
96401-081417
|
$3.77 | ||
| 20 |
Dowel Pin, 8*26.5
94301-08265
|
$3.35 |
