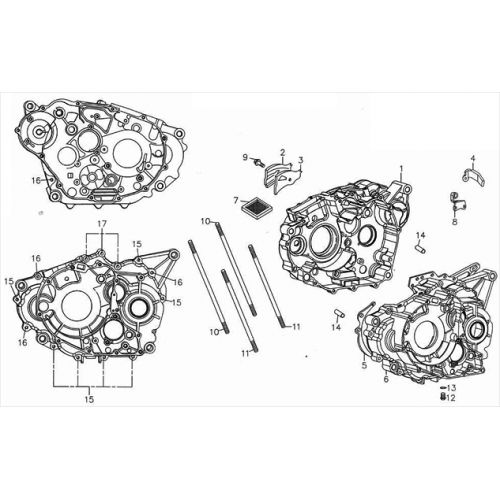

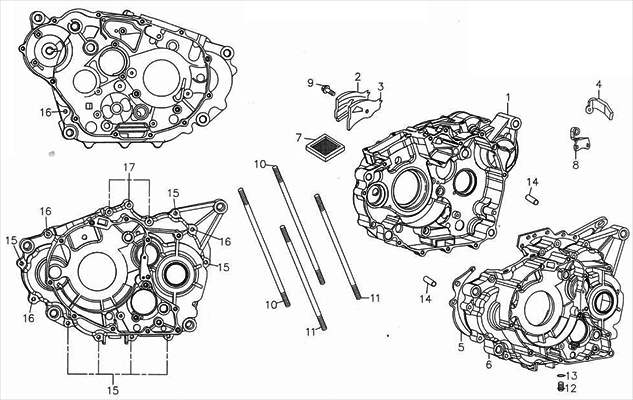

Crankcase (Adly ATV 300S Interceptor)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Right Crankcase
11101-169-000
|
|||
| 2 |
Breather Plate
11342-169-000
|
$6.22 | ||
| 3 |
Breather Plate Gasket
11346-169-000
|
$4.69 | ||
| 4 |
Wire Clamp
11384-169-000
|
$3.35 | ||
| 5 |
Crankcase Gasket
11191-169-000
|
$15.82 | ||
| 6 |
L.Crank Case Comp
11201-169-000
|
|||
| 7 |
Oil Filter Screen
15421-169-000
|
$9.52 | ||
| 8 |
Clutch Wire Bracket
22838-169-000
|
$4.18 | ||
| 9 |
Hex Socket Flange Bolt, 6*12
91300-06012B
|
$2.01 | ||
| 10 |
Stud Bolt, 10*192
91001-10192Z
|
$9.37 | ||
| 11 |
Stud Bolt, 10*184
91001-10184Z
|
$9.37 | ||
| 12 |
Hex Flange Bolt, 12*15
96000-12015-17C
|
$3.35 | ||
| 13 |
Plain Washer, 12.5*20*2
94104-1320020
|
$1.67 | ||
| 14 |
Dowel Pin, 10*16
94301-10160
|
$1.26 | ||
| 15 |
Hex Flange Bolt, 6*35
96000-06035-10B
|
$3.35 | ||
| 16 |
Hex Flange Bolt, 6*45
96000-06045-10B
|
$1.26 | ||
| 17 |
Hex Flange Bolt, 6*65
96000-06065-10B
|
$2.09 | ||
| 18 |
Left/Right Crankcase
11100-169-000
|
$266.07 |
