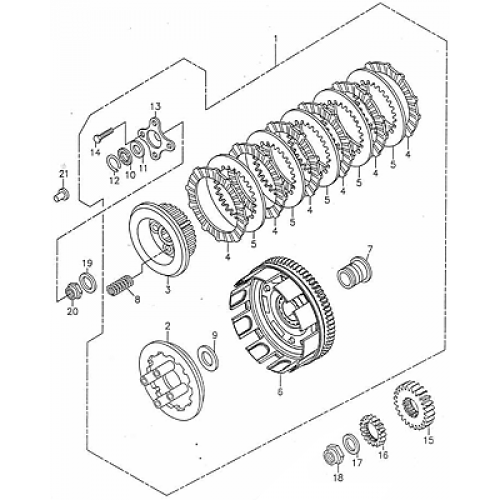

Clutch (Adly ATV 300S Interceptor)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Clutch Ass'Y
22100-169-000
|
|||
| 2 |
Clutch Pressure Plate
22350-169-000
|
$21.09 | ||
| 3 |
Clutch Center
22121-169-000
|
$37.82 | ||
| 4 |
Clutch Friction Disk
22201-169-000
|
$14.69 | ||
| 5 |
Clutch Plate
22311-169-000
|
$9.98 | ||
| 6 |
Clutch Cover Comp Ass'Y
22110-169-000
|
$132.37 | ||
| 7 |
Oil Bush
22500-169-000
|
$32.95 | ||
| 8 |
Clutch Spring
22401-169-000
|
$7.45 | ||
| 9 |
Plain Washer, 22.3*45*0.8
94101-2245008A
|
$4.18 | ||
| 10 |
Needle Bearing, 12*26*2
96270-122602
|
$8.79 | ||
| 11 |
Thrust Washer, 12*26*1
96271-169-000
|
$3.35 | ||
| 12 |
Cir Clip
22362-169-000
|
$1.26 | ||
| 13 |
Clutch Lifter Plate
22361-169-000
|
$7.32 | ||
| 14 |
Hex Bolt, 6*28
92000-06028-10K
|
$0.87 | ||
| 15 |
Primary Drive Gear, 24T
23121-169-000
|
$36.56 | ||
| 16 |
Oil Pump Driver Gear, 17T
15131-169-000
|
$15.82 | ||
| 17 |
Disc Spring Washer, 20.5*29.5*2.2
94113-2130022A
|
$2.09 | ||
| 18 |
Lock Nut(Left Thread), M20
93961-20100L
|
$8.64 | ||
| 19 |
Disc Spring Washer, 18.5*28*2
94113-1928020A
|
$2.09 | ||
| 20 |
Lock Nut, M18
93960-18090B
|
$8.39 |
