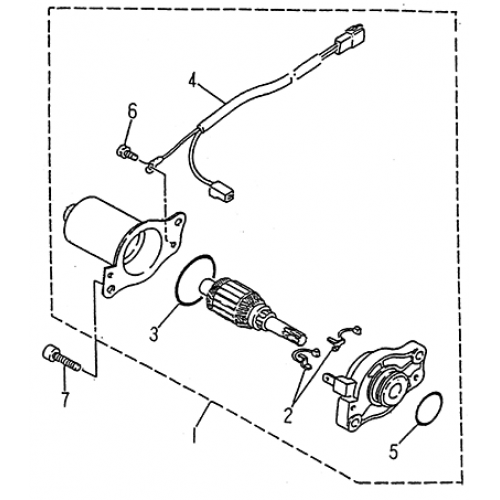

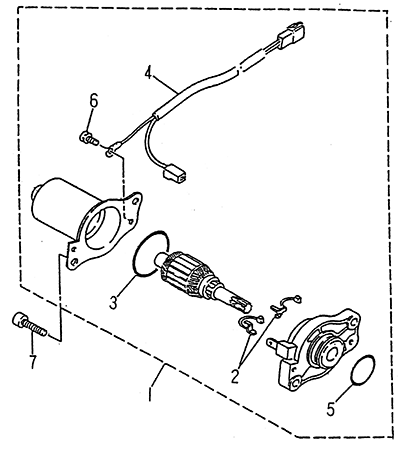

Starting Motor (LRX/SMC ATV 50 mini)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
STARTER MOTOR ASSEMBLY
35800-NAF-00
|
$99.99 | ||
| 2 |
BRUSH SET
35801-NAF-00
|
$12.55 | ||
| 3 |
GASKET, YOKE
35811-NAF-00
|
$1.39 | ||
| 4 |
CORD COMP
35831-NAF-00
|
$18.83 | ||
| 5 |
O-RING
93210-19230
|
$1.39 | ||
| 6 |
SCREW, PAN HEAD W/WASHER
96312-04012-C
|
$0.68 | ||
| 7 |
BOLT,SOCKET
96510-06020-K
|
$1.39 |
