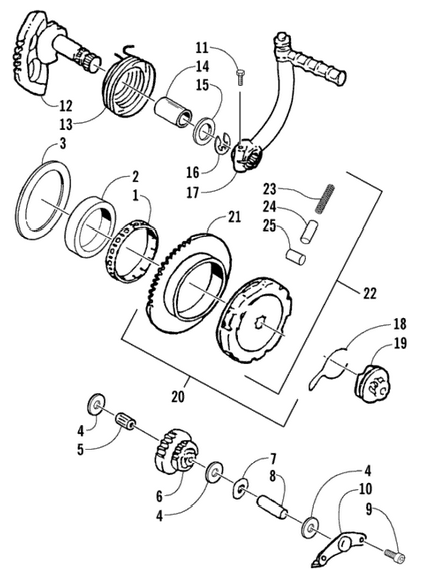

Starter (Arctic Cat 90 2T)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Bearing, Needle
3301-423
|
$27.89 | ||
| 2 |
Boss, Bearing
3301-424
|
$11.16 | ||
| 3 |
Washer
3301-355
|
$4.18 | ||
| 4 |
Washer
3301-344
|
$0.67 | ||
| 5 |
Bearing, Needle
3301-418
|
$12.55 | ||
| 6 |
Gear, Idler
3301-121
|
$16.74 | ||
| 7 |
Washer, Wave
3301-311
|
$0.42 | ||
| 8 |
Shaft, Idler
3301-426
|
$2.09 | ||
| 9 |
Screw, Cap
3301-287
|
$0.61 | ||
| 10 |
Plate, Idler Gear
3301-009
|
$9.48 | ||
| 11 |
Screw, Cap
3301-391
|
|||
| 12 |
Starter Shaft Assembly
3301-127
|
$38.69 | ||
| 13 |
Spring, Reset - Starter Shaft
3301-128
|
$5.58 | ||
| 14 |
Bushing
3301-429
|
$1.26 | ||
| 15 |
Washer
3301-351
|
$1.34 | ||
| 16 |
Circlip
3301-377
|
$0.91 | ||
| 17 |
Starter Crank Assembly
3301-129
|
$30.45 | ||
| 18 |
Clip, Spring - Starter Pinion
3301-125
|
$1.12 | ||
| 19 |
Starter Pinion Assembly
3301-126
|
$34.87 | ||
| 20 |
Starter Clutch - Electric - Assembly | (Inc. 21-25)
3301-130
|
$71.70 |
