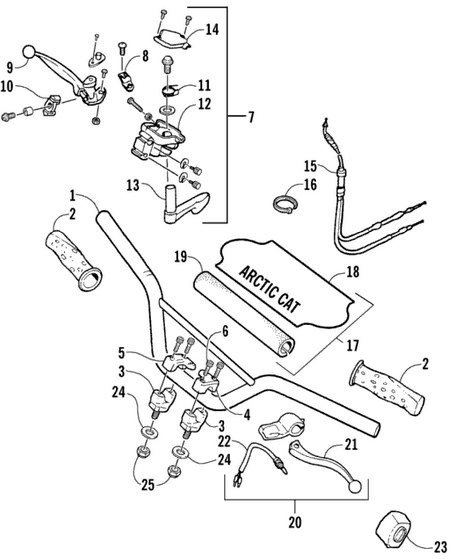

Handlebar Assembly (Arctic Cat 90 2T)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Handlebar
3301-230
|
|||
| 2 |
Grip, Handlebar
3301-234
|
|||
| 3 |
Clamp, Handlebar - Bottom
3301-231
|
|||
| 4 |
Clamp, Handlebar - Left
3301-232
|
$8.37 | ||
| 5 |
Clamp, Handlebar - Right
3301-233
|
$8.37 | ||
| 6 |
Screw, Cap
3301-290
|
|||
| 7 |
Lever Assembly - Right | (Inc. 8-13)
3301-861
|
|||
| 8 |
Bracket, Throttle Cable
3301-239
|
$1.67 | ||
| 9 |
Lever, Brake - Right
3301-240
|
|||
| 10 |
Bracket, Cable
3301-238
|
$8.37 | ||
| 11 |
Spring, Throttle Lever
3301-244
|
$0.84 | ||
| 12 |
Bracket, Lever
3301-237
|
$16.74 | ||
| 13 |
Lever, Throttle
3301-243
|
$12.55 | ||
| 14 |
Cover, Lever Body
3301-236
|
$6.69 | ||
| 15 |
Cable, Throttle
3301-555
|
$37.35 | ||
| 16 |
Cable Tie
3301-465
|
|||
| 18 |
Pad, Handlebar - Assembly | (Inc. 18-19)
3301-457
|
|||
| 19 |
Pad, Handlebar
3301-459
|
|||
| 20 |
Lever Assembly - Left | (Inc. 21-22)
3301-242
|
$52.03 | ||
| 21 |
Lever, Brake - Left
3301-241
|
