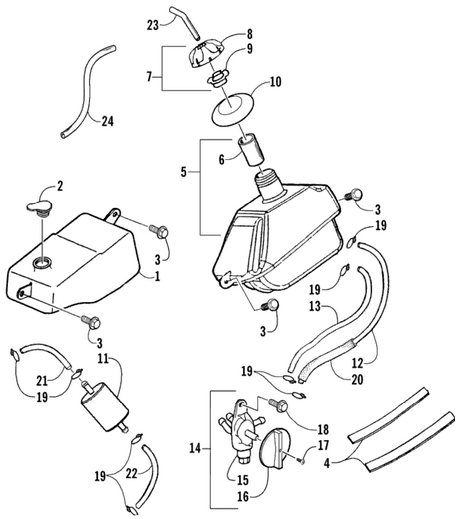

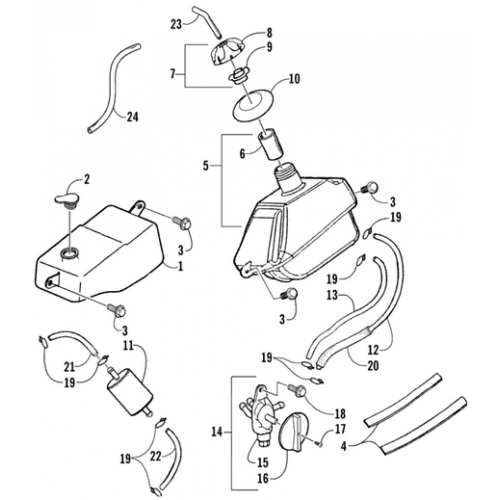

Gas Tank | Oil Tank (Arctic Cat 90 2T)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Tank, Oil
3301-245
|
$43.17 | ||
| 2 |
Cap, Oil Tank
3301-246
|
|||
| 3 |
Screw, Cap
3301-306
|
$3.35 | ||
| 4 |
Pad, Foam
3301-076
|
$7.85 | ||
| 5 |
Tank, Gas | (Inc. 6)
3301-073
|
|||
| 6 |
Tube, Gas Tank
3301-084
|
$20.92 | ||
| 7 |
Tank Cap Assembly | (Inc. 8-9)
3301-078
|
|||
| 8 |
Cap, Tank
3301-079
|
|||
| 9 |
Gasket, Cap
3301-081
|
|||
| 10 |
Gasket, Front Cover - Rubber
3301-489
|
|||
| 11 |
Cup, Oil Filter
3301-075
|
|||
| 12 |
Tube
3301-370
|
$10.04 | ||
| 13 |
Tube
3301-369
|
|||
| 14 |
Cup, Gas | (Inc. 15-17)
3301-059
|
|||
| 15 |
Body, Gas Cup
3301-491
|
|||
| 16 |
Knob, Gas Cup
3301-080
|
|||
| 17 |
Screw, Machine
3301-470
|
|||
| 18 |
Screw, Machine
3301-317
|
$1.74 | ||
| 19 |
Clip
3301-374
|
$1.39 | ||
| 20 |
Cover, Tube
3301-481
|
