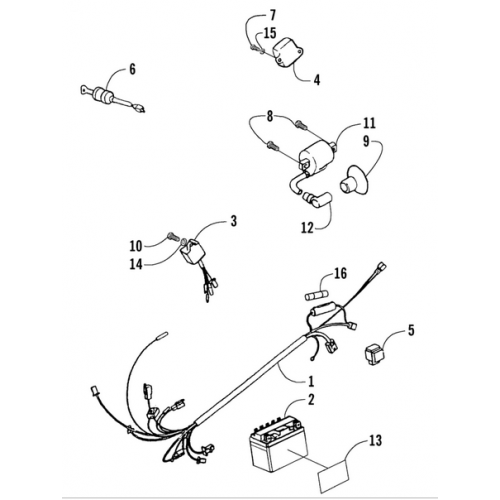

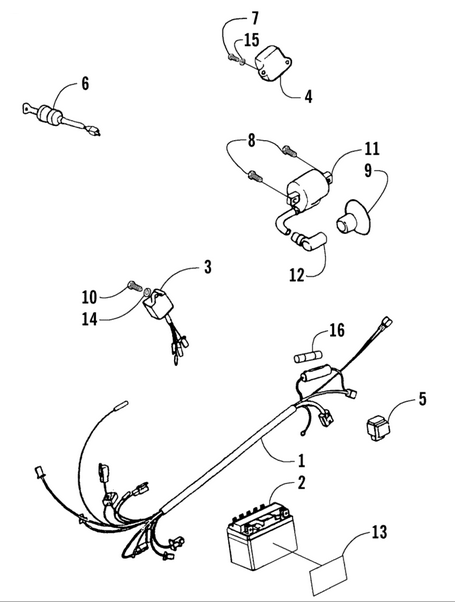

Electrical (Arctic Cat 90 2T)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Harness, Main | (Inc. 16)
3301-147
|
|||
| 2 |
Battery
3301-145
|
|||
| 3 |
Cdi Unit
3301-135
|
$76.92 | ||
| 4 |
Regulator
3301-146
|
$47.36 | ||
| 5 |
Relay, Starter
3301-154
|
$40.41 | ||
| 6 |
Switch, Ignition
3301-151
|
|||
| 7 |
Screw, Machine
3301-316
|
|||
| 8 |
Screw, Cap
3301-390
|
|||
| 9 |
Cap, Rubber
3301-137
|
$3.49 | ||
| 10 |
Screw, Machine
3301-318
|
|||
| 11 |
Coil, Ignition
3301-136
|
|||
| 12 |
Cap, Spark Plug
3301-138
|
$11.24 | ||
| 13 |
Decal, Warning - Battery
3301-463
|
|||
| 14 |
Washer, Spring
3301-360
|
|||
| 15 |
Washer, Spring
3301-475
|
|||
| 16 |
Fuse - 7 Amp
3301-512
|
