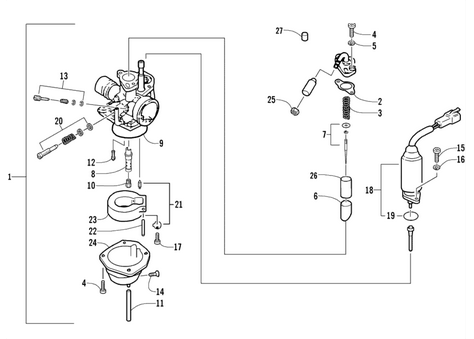

Carburetor Assembly (Arctic Cat 90 2T)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Carburetor Assembly | (Inc. 2-26)
3301-038
|
|||
| 2 |
Gasket, Carburetor
3301-039
|
$2.30 | ||
| 3 |
Spring, Throttle Valve
3301-040
|
$2.30 | ||
| 4 |
Screw
3301-828
|
$1.26 | ||
| 5 |
Washer, Spring
3301-359
|
$0.28 | ||
| 6 |
Valve, Throttle
3301-041
|
$20.92 | ||
| 7 |
Set, Jet Needle
3301-042
|
$11.16 | ||
| 8 |
Needle Jet
3301-043
|
$11.16 | ||
| 9 |
Seal, Float Chamber
3301-044
|
|||
| 10 |
Main Jet
3301-046
|
$11.14 | ||
| 11 |
Tube, Overflow
3301-047
|
$1.12 | ||
| 12 |
Jet, Pilot
3301-048
|
$11.16 | ||
| 13 |
Screw, Air Adjustment
3301-052
|
$5.93 | ||
| 14 |
Plug, Drain
3301-049
|
$1.67 | ||
| 15 |
Screw, Machine
3301-313
|
|||
| 16 |
Washer, Spring
3301-358
|
$2.79 | ||
| 17 |
Screw, Machine
3301-312
|
|||
| 18 |
Choke Assembly - Electric | (Inc. 19)
3301-066
|
|||
| 19 |
O-Ring
3301-299
|
$2.79 | ||
| 20 |
Screw, Throttle
3301-051
|
$6.97 |
