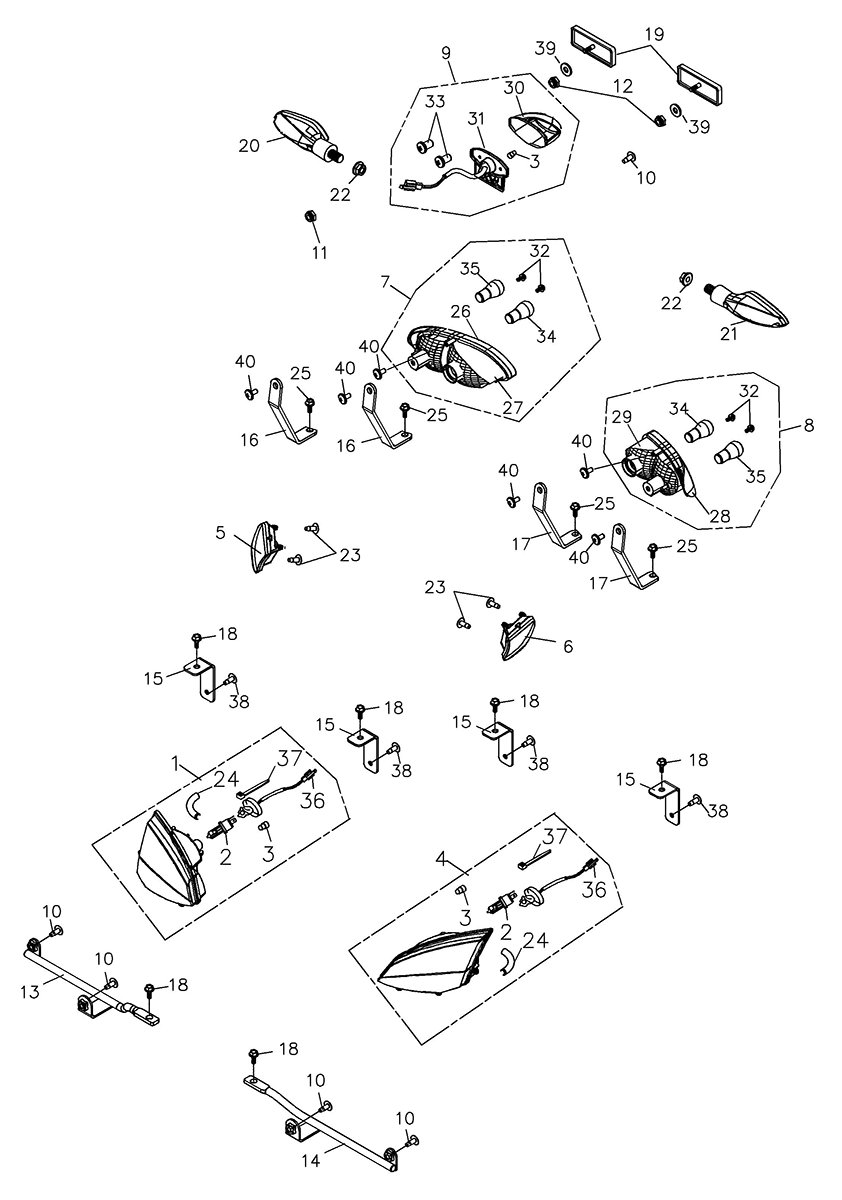

Signal Light | Tail Light (Adly Mini Car 320)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
R. Head Light Assy
33100-258-001
|
$93.87 | ||
| 2 |
Head Light Bulb, 12V35W35W
34901-190-00B
|
$15.98 | ||
| 3 |
Position Lamp , 12V5W
34909-169-000
|
$8.79 | ||
| 4 |
L. Head Light Ass'Y
33200-258-001
|
$93.87 | ||
| 5 |
R.Signal Ass'Y (E-Mark), E9-001302
33400-912-000
|
$42.13 | ||
| 6 |
L.Signal Ass'Y (E-Mark), E9-001302
33450-912-000
|
$42.13 | ||
| 7 |
R. Tail Light Assy, E-MARK
33700-912-000
|
$42.13 | ||
| 8 |
L. Tail Light Assy, E-MARK
33760-912-000
|
$42.13 | ||
| 9 |
License Plate Light
33750-912-000
|
$14.61 | ||
| 10 |
Pan Phillips Bolt, M5*16
93500-05016B
|
$0.59 | ||
| 11 |
Hex Nut, 5mm
94001-05000C
|
$0.67 | ||
| 12 |
Hex Flange Nut, 6mm
94050-06000C
|
$0.84 | ||
| 13 |
Hear Light Right Fixed Pole
33123-912-002
|
$11.16 | ||
| 14 |
Head Light Left Fixed Pole
33223-912-002
|
$11.16 | ||
| 15 |
Head Light Left Setting Ring Socket
33154-912-000
|
$3.86 | ||
| 16 |
R. Rear Light Bracket
33761-912-000
|
$3.94 | ||
| 17 |
L. Rear Light Bracket
33762-912-000
|
$3.94 | ||
| 18 |
Hex Washer Face Bolt, 6*14
92006-06014-10G
|
$2.09 | ||
| 19 |
Reflector (E-Mark, SAE)
33741-133-000
|
$7.32 | ||
| 20 |
L.Rear Signal Assy
33445-912-000
|
$43.66 |
