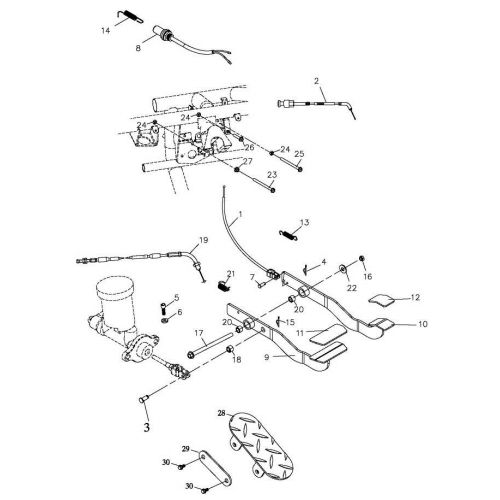

Pedal System (Adly Mini Car 320)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Throttle Cable
17910-912-0A0
|
$25.10 | ||
| 2 |
Choke Cable
17950-912-0A0
|
$19.94 | ||
| 3 |
Fix Pin, 8*20
45608-912-000
|
$5.07 | ||
| 4 |
Lock Pin, 6mm
94251-108-000
|
$0.59 | ||
| 5 |
Lock Bolt
53191-168-000
|
|||
| 6 |
Lock Nut
53192-168-000
|
|||
| 7 |
Brake Cable Bolt
43451-156-000
|
$1.45 | ||
| 8 |
Stop Switch Ass'Y
35350-108-000
|
$10.54 | ||
| 9 |
Pedal Brake
46500-912-001
|
$43.66 | ||
| 10 |
Accelerator Pedal
46600-912-001
|
$39.29 | ||
| 11 |
Pedal Brake
46506-801-000
|
|||
| 12 |
Accelerator Pedal
46602-912-000
|
|||
| 13 |
Brake Return Spriing
46514-912-000
|
$1.74 | ||
| 14 |
Stop Switch Spring
35357-912-000
|
$2.90 | ||
| 15 |
Lock Pin, 8mm
94251-912-000
|
$0.75 | ||
| 16 |
Nylon Insert Lock Nut, M12
90350-12000G
|
$2.01 | ||
| 17 |
Hex Flange Bolt (Green Zinc), 12*160
96000-12160-14G
|
$11.16 | ||
| 18 |
Space Tube, 8*12*9
96403-0812009
|
$2.32 | ||
| 19 |
Brake Cable
43470-912-0A0
|
|||
| 20 |
Space Tube, 12*16*20
96403-1216020
|
$4.35 |
