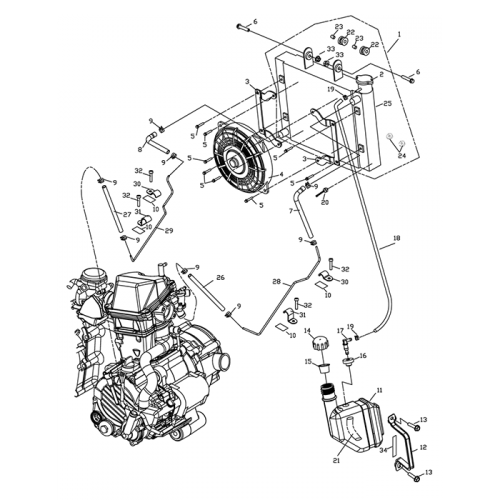

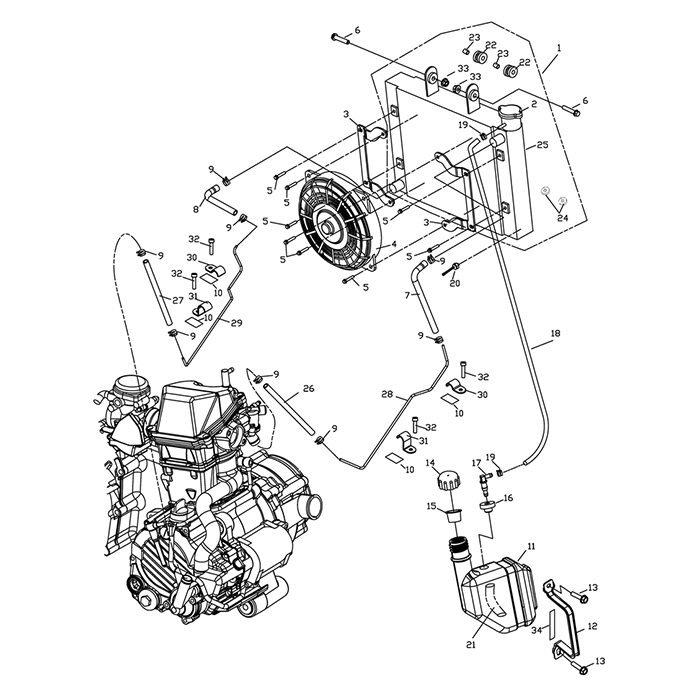

Cooling System (Adly Mini Car 320)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Radiator Assy
19000-912-000
|
$166.70 | ||
| 2 |
Pressure Cap
19110-179-000
|
$15.82 | ||
| 3 |
Grommet
19104-179-000
|
|||
| 4 |
Bushing
19105-179-000
|
|||
| 5 |
Grommet
19108-179-000
|
|||
| 6 |
Radiator Body
19100-912-000
|
$162.07 | ||
| 7 |
Radiator Fan Plate
19123-912-000
|
$12.68 | ||
| 8 |
Radiator Fan Assy
19120-501-000
|
$157.44 | ||
| 9 |
Clamp
94516-27000
|
|||
| 9 |
Hex Washer Face Bolt, 6*14
92006-06014-10G
|
$2.09 | ||
| 10 |
Coolant Pipe Hook Isolation Gasket, 20*25*4.1
19132-912-000
|
$1.04 | ||
| 10 |
Hex Flange Bolt, M8*25
96000-08025-12G
|
$2.01 | ||
| 11 |
Coolant Tank, REV.A
19200-179-000
|
$15.82 | ||
| 11 |
Hose Rad. In
19107-912-001
|
$18.26 | ||
| 12 |
Hose Rad. Out
19102-912-001
|
$11.66 | ||
| 12 |
Tank Anchor
19201-179-000
|
$15.82 | ||
| 13 |
Hex Flange Bolt, 6*16
96000-06016-10G
|
$0.67 | ||
| 14 |
Coolant Tank Cap
19210-179-000
|
|||
| 15 |
Cap Protector
19211-179-000
|
$0.96 | ||
| 16 |
Grommet
19106-179-000
|
$1.67 |
