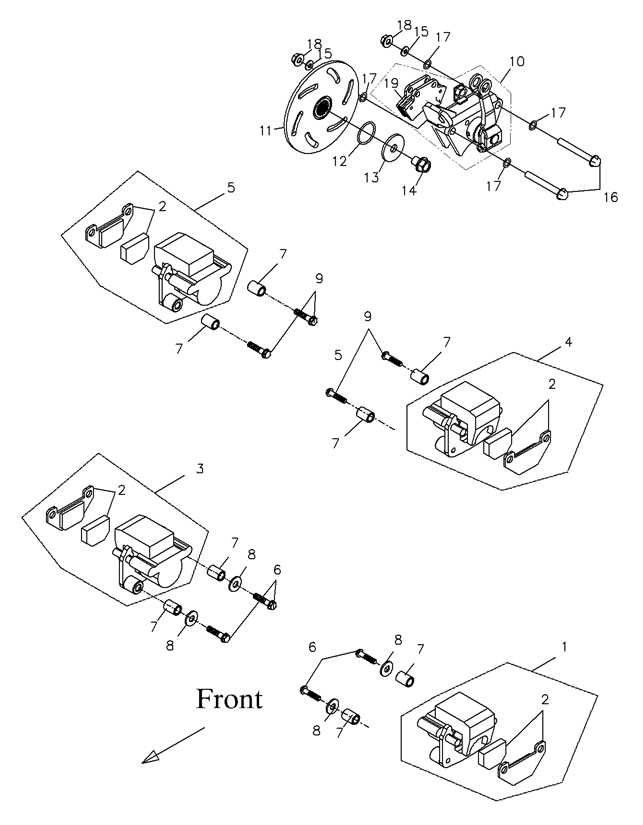

Brake Caliper (Adly Mini Car 320)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
R Front Brake Caliper
45000-601-000
|
$129.65 | ||
| 2 |
Brake Pad Ass'Y
45120-601-000
|
$36.21 | ||
| 3 |
L Front Brake Caliper
45200-601-000
|
$129.65 | ||
| 4 |
R. Rear Brake Caliper Ass'Y
43000-601-000
|
$129.65 | ||
| 5 |
L Rear Brake Caliper
43200-601-000
|
$129.65 | ||
| 6 |
Hex Washer Face Bolt (Green Zinc), 10*25
96000-10025-14G
|
$2.90 | ||
| 7 |
Space Tube, 10.2*18*10
96401-101810
|
$3.36 | ||
| 8 |
Copper Plain Washer, 10*20*2
94101-1020020G
|
$0.84 | ||
| 9 |
Hex Washer Face Bolt (Green Zinc), 10*22
96000-10022-14G
|
$2.32 | ||
| 10 |
Caliper
43300-601-000
|
$81.07 | ||
| 11 |
Shaft Brake Disc, 180*20.5
42205-601-0A1
|
$64.04 | ||
| 12 |
Oil Ring, 25*2.4
91325-175-000
|
$2.90 | ||
| 13 |
Plain Washer, 10.5*32*3
94101-1032030C
|
$1.67 | ||
| 14 |
Hex Socket Bolt (L), 10*25
91010-10025G
|
$3.01 | ||
| 15 |
Plain Washer, 8*15*1.5
94101-0815015C
|
$0.50 | ||
| 16 |
Ladder Bolt (Green Zinc), M8*62
90111-08062-14G
|
$5.58 | ||
| 17 |
Oil-Ring, 9*4
91309-197-000
|
$2.01 | ||
| 18 |
Hex Nut, 8mm
94001-08000C
|
$0.84 | ||
| 19 |
Pad
43320-601-000
|
$29.67 |
