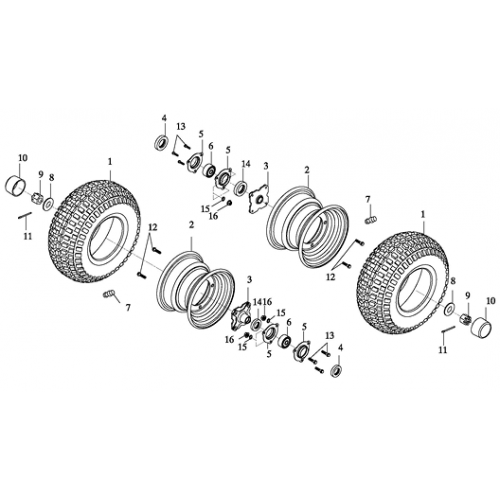

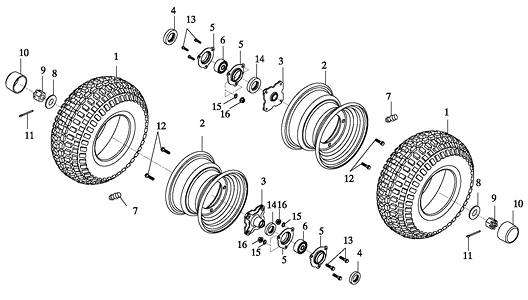

Rear Wheel (Adly GK-125 2009)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Rear Tire 18x9.5-8
42811-168-000
|
|||
| 2 |
Rear Rim, 8*7
42801-146-000
|
|||
| 3 |
Adly Go Kart Rear Hub
42036-168-000
|
$36.56 | ||
| 4 |
Oil Seal, 40*28*6
96500-40286
|
$2.93 | ||
| 5 |
Bearing Holder
96600-168-000
|
|||
| 6 |
Radial Ball Bearing
96100-6005
|
$15.82 | ||
| 7 |
Air Nozzle
42616-145-000
|
$4.18 | ||
| 8 |
Plain Washer, 16*40*5
94101-1640050C
|
$2.85 | ||
| 9 |
Ex.Slotted Nut, 16mm
94051-16000-24C
|
$8.79 | ||
| 10 |
Rubber Cover, ADLY
42814-145-000
|
|||
| 11 |
Cotter Pin, 2*19
94201-20190B
|
$0.42 | ||
| 12 |
Hex Washer Face Bolt, 10*20
96000-10020-14B
|
$3.01 | ||
| 13 |
Hex Washer Face Bolt, 8*20
96000-08020-12K
|
|||
| 14 |
Oil Seal, 40*25*7
96500-40257
|
$4.18 | ||
| 15 |
Spring Washer, 8.5*13*2
94111-0813020
|
$0.84 | ||
| 16 |
Nylon Nut, M8
90350-08000G
|
