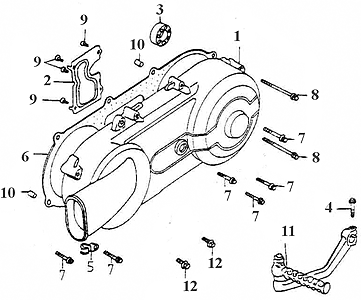

Left Crankcase Cover (Adly GK-125 2009)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Cover L
11341-121-000
|
$97.33 | ||
| 2 |
L.Cover Plate
11342-120-000
|
$2.26 | ||
| 3 |
Radial Ball Bearing, 6200Z
96100-6200Z
|
$7.69 | ||
| 4 |
Hex Flange Bolt, 6*22
96000-06022-08C
|
$0.59 | ||
| 6 |
L.Cover Gasket
11359-121-000
|
|||
| 7 |
Hex Flange Bolt, 6*40
96000-06040-08C
|
$1.34 | ||
| 8 |
Hex Washer Face Bolt, 6*65
96000-06065-08C
|
$3.91 | ||
| 9 |
Tapping Screw Truss Head Phillips, 4*8
93903-04008K
|
$0.42 | ||
| 10 |
Dowel Pin, 6.3*8*14
94301-08140
|
$1.26 | ||
| 11 |
Kick Starter Arm
28300-120-000
|
$37.99 | ||
| 12 |
Hex Washer Face Bolt, 6*12
96000-06012-08C
|
$0.74 |
