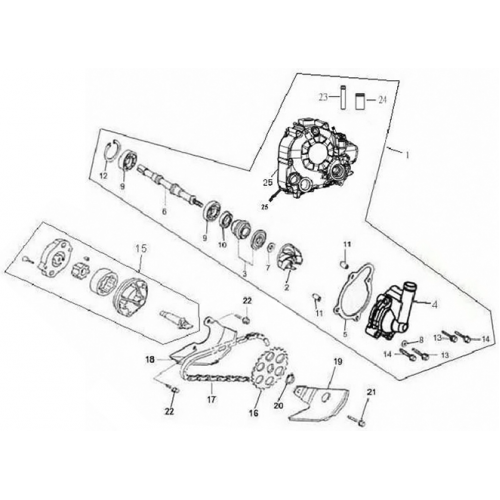

Water Pump / Oil Pump (Adly ATV Q300)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Right Crankcase Cover Assy
11331-225-000
|
|||
| 2 |
Water Pump Impeller
15803-225-000
|
$15.21 $11.41 | ||
| 3 |
Water Pump Oil Seal
15805-225-000
|
|||
| 4 |
Water Pump Cover
15820-225-001
|
$27.26 $20.44 | ||
| 5 |
Water Pump Cover Gasket
15823-225-000
|
$4.35 $3.26 | ||
| 6 |
Water Pump Shaft
15802-225-000
|
|||
| 7 |
Plain Washer, 7*13*1.2
94101-0713010B
|
$0.59 $0.44 | ||
| 8 |
Sealing Washer, 6.5*12*1
94103-0612010
|
$2.09 $1.57 | ||
| 9 |
Radial Ball Bearing, 6800
96100-68000
|
$12.55 $9.41 | ||
| 10 |
Oil Seal, 10*20*5
96500-10205
|
$5.39 $4.04 | ||
| 11 |
Dowel Pin, 6.3*8*14
94301-08140
|
$1.26 $0.94 | ||
| 12 |
Internal Cir Clip, RTW-19
94512-1900R
|
|||
| 13 |
Hex Flange Bolt, 6*25
96000-06025-08B
|
$2.51 $1.88 | ||
| 14 |
Hex Flange Bolt, 6*40
96000-06040-08B
|
$1.33 $1.00 | ||
| 15 |
Oil Pump Ass'Y
15100-225-000
|
|||
| 16 |
Oil Pump Drive Gear, 25T
15150-225-000
|
|||
| 17 |
Oil Pump Chain
15141-225-000
|
|||
| 18 |
Oil Separator
15711-225-000
|
|||
| 19 |
Oil Separator
15712-225-000
|
|||
| 20 |
External Cir Clip, STW-10
94511-1000S
|
$0.67 $0.50 |
