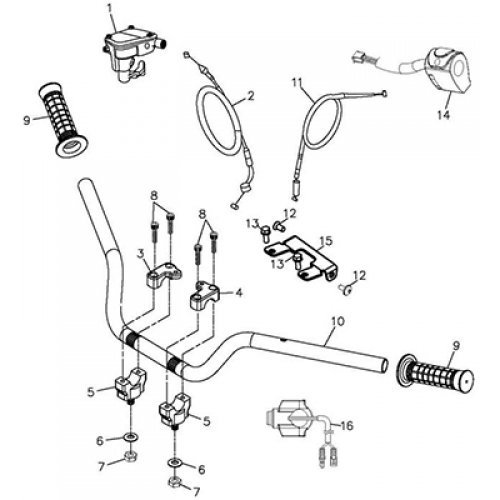

Handle Bar (Adly ATV Q300)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Throttle Lever Ass'Y
53170-261-000
|
$56.73 $42.55 | ||
| 2 |
Throttle Cable
17910-272-0A0
|
$29.00 $21.75 | ||
| 3 |
Right Handle Bar Clamp
53103-145-00A
|
$8.79 $6.59 | ||
| 4 |
Left Handle Bar Clamp
53102-145-00A
|
$8.79 $6.59 | ||
| 5 |
Handle Bar Bottom Clamp
53101-154-000
|
$11.60 $8.70 | ||
| 6 |
Plain Washer, 10*22*2.5
94105-1022025G
|
$2.09 $1.57 | ||
| 7 |
Nylon Nut, M10*P1.25
90350-10000G
|
$0.67 $0.50 | ||
| 8 |
Hex Socket Bolt, M6*25
91000-06025K
|
$1.00 $0.75 | ||
| 9 |
Handle Grip Set
53165-179-000
|
$15.82 $11.86 | ||
| 10 |
Handle Bar-(Black)Us
53100-197-000BK
|
$36.56 $27.42 | ||
| 11 |
Choke Cable
17950-272-000
|
$23.06 $17.30 | ||
| 12 |
Pan Flat Head Phillips Bolt, 6*15
93701-06015G
|
$2.09 $1.57 | ||
| 13 |
Hex Socket Bolt, 6*12
91000-06012K
|
|||
| 14 |
L.Handle Switch Ass'Y
35200-256-000
|
|||
| 15 |
Speedometer Bracket
37210-225-000
|
$11.72 $8.79 | ||
| 16 |
Reverse Gear Overdrive Switch
32206-272-000
|
