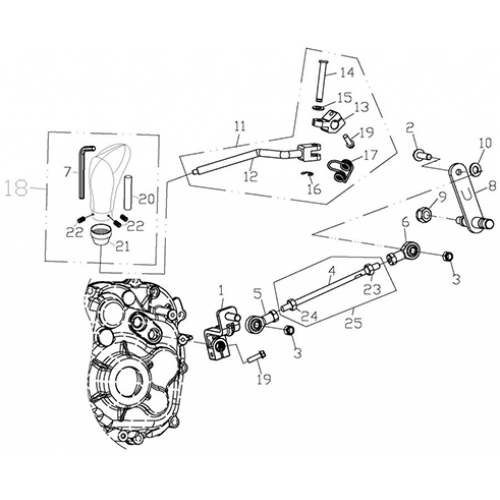

Gear Shift System (Adly ATV Q300)

Change Assembly

Gear Shift System (Adly ATV Q300)
# Product Name Req'd Price:
1 Shift Lever-Rev.1
24811-256-000
2 Hex Washer Face Bolt, M8*28
96000-08028-12G
 $2.18
3 Nut, 8mm
94053-08000G
 $2.09
4 Connecting Rod, 8*390
91001-08390B
5 Rod End (Left Thread)
24714-256-000
6 Rod End (Right Thread)
24715-256-000
7 Spanner
24812-197-000
8 Shifting Plate, 100MM
24705-225-000
9 Nylon Nut, M10*P1.25
90350-10000G
 $0.67
10 Plain Washer, 8*16*2
94101-0816020B
 $0.50
11 Shaft Lever Assy
24720-258-000
12 Shaft Rod
24701-258-000
13 Shaft Lever
24719-256-000
14 Pin
24716-256-000
15 Plain Washer, 8*16*2
94101-0814020G
 $0.84
16 External Cir Clip, ETW-7
94511-0700E
 $0.50
17 Shaft Rod Return Spring
24708-256-000
18 Knob
24807-197-000
 $36.56
19 Hex Washer Face Bolt, M6*25
96000-06025-10G
 $1.00
20 Knob Sfift, 11*16.5*50
24813-197-000
Showing 1 to 20 of 25 (2 Pages)
