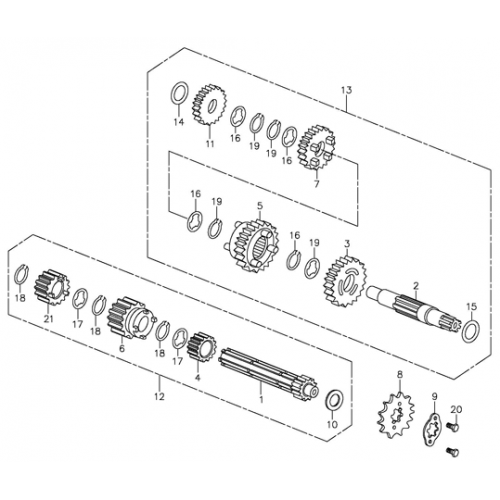

Transmission (Adly ATV 90Z2 4T (Gear Drive))
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Main Shaft
23211-152-000
|
$31.63 $23.72 | ||
| 2 |
Counter Shaft
23221-152-000
|
|||
| 3 |
C-1 Gear Comp
23421-152-000
|
|||
| 4 |
M-2 Gear
23441-152-000
|
|||
| 5 |
C-2 Gear
23451-152-000
|
|||
| 6 |
M-3 Gear
23461-152-000
|
|||
| 7 |
C-3 Gear
23471-152-000
|
|||
| 8 |
Drive Sprocket, 13T
23802-152-000
|
$10.25 $7.69 | ||
| 9 |
Drive Sprocket Fixing Plate
23811-152-000
|
$8.79 $6.59 | ||
| 10 |
Thrust Washer, 14*26*0.5
90451-1426005
|
|||
| 11 |
C-4 Gear
23491-152-000
|
|||
| 12 |
Main Shaft Ass'Y
23202-152-000
|
$92.40 $69.30 | ||
| 13 |
Counter Shaft Assy
23201-152-000
|
$97.33 $73.00 | ||
| 14 |
Thrust Washer, 13.5*26*1
90451-1426010
|
$2.68 $2.01 | ||
| 15 |
Thrust Washer, 17*24*0.5
90451-1724005
|
|||
| 16 |
Soline Washer, 20*24*1.2
90455-2024012
|
|||
| 17 |
Soline Washer, 17*21*1.2
90455-1721012
|
|||
| 18 |
External Cir Clip, GTW-17
94511-1700G
|
$0.84 $0.63 | ||
| 19 |
External Cir Clip, STW-20
94511-2000S
|
$1.67 $1.26 | ||
| 20 |
Hex Bolt, 6*8
92000-06008-10C
|
$1.34 $1.00 |
