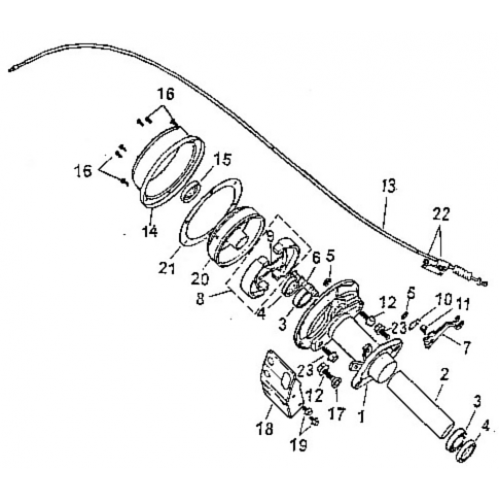

Rear Brake (Adly ATV 90Z2 4T (Gear Drive))

Sort By:

Show:

#	Product Name	Price:
1	Rear Brake Panel 43101-152-000	$56.73 $42.55
2	Rear Brake Panel Spacer 42313-145-000	$11.72 $8.79
3	Radial Ball Bearing, 6006ZZ 96100-6006ZZ
4	Oil Seal, 355511 96500-355511
5	Oil Seal, 14204 96500-14204	$2.72 $2.04
6	Rear Brake Cam Shaft(Rev.1) 43141-145-000	$11.70 $8.78
7	Rear Brake Arm 43410-152-000	$12.45 $9.34
8	Rear Brake Shoe Comp.(Rev.1) 43120-145-000	$34.72 $26.04
9	Shoe Strain Spring, 1.6*36 43151-145-000
10	Return Spring 42617-152-000	$3.35 $2.51
11	Hex Washer Face Bolt, 6*32 96000-06032-10C	$1.00 $0.75
12	Hex Washer Face Bolt, 12*27 96000-12027-17CL	$5.27 $3.95
13	Adly 90Z2 Rear Brake Cable 43450-152-000	$31.63 $23.72
14	Rear Drum Cover(Rev.1) 42612-145-000	$50.43 $37.82
15	Oil Seal, 325211 96500-325211	$4.18 $3.14
16	Hex Washer Face Bolt, 6*12 96000-06012-10G	$1.34 $1.00
17	Plain Washer, 12255 94101-1225050C	$2.01 $1.51
18	Right Rear Brake Cover 42613-145-000	$11.86 $8.90
19	Hex Washer Face Bolt, 8*12 96000-08012-12G	$1.00 $0.75
20	Rear Drum(Rev.2) 42601-145-000	$85.01 $63.76

Showing 1 to 20 of 23 (2 Pages)
