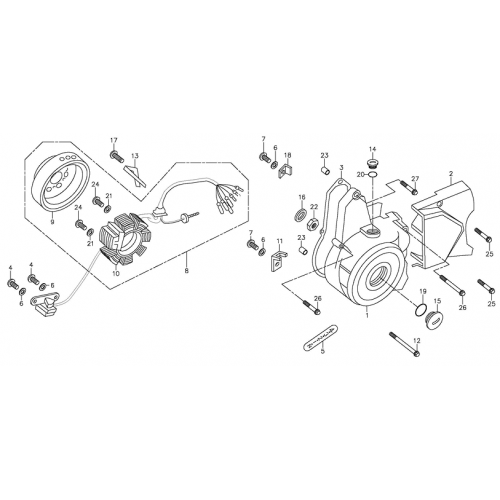

Left Crankcase Cover, Generator (Adly ATV 90Z2 4T (Gear Drive))
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
L. Crank Case Cover
11341-152-000
|
$60.37 $45.28 | ||
| 2 |
L. Crank Case Rear Cover
11361-152-000
|
|||
| 3 |
L. Cover Gasket
11359-152-000
|
$10.98 $8.24 | ||
| 4 |
Pan Phillips Bolt, 5*10
93500-05010C
|
$0.59 $0.44 | ||
| 5 |
Shaft Sticker
87710-152-000
|
$0.42 $0.31 | ||
| 6 |
Spring Washer, 5*8*1
94111-0508010
|
$0.42 $0.31 | ||
| 7 |
Pan Phillips Bolt, 5*8
93500-05008
|
$0.42 $0.31 | ||
| 8 |
A.C.Generator Ass'Y
31100-152-000
|
$154.34 $115.75 | ||
| 9 |
Fly Wheel Comp
31110-152-000
|
|||
| 10 |
Stator Comp
31120-152-000
|
$97.33 $73.00 | ||
| 11 |
Wire Bracket 2
32963-152-000
|
$2.09 $1.57 | ||
| 12 |
Hex Socket Bolt, 6*70
91000-06070
|
$1.67 $1.26 | ||
| 13 |
A.C.Generator Cord Clamper
32961-152-000
|
$4.18 $3.14 | ||
| 14 |
A.C.G. Cap (Small), 14mm
90084-108-000
|
$4.18 $3.14 | ||
| 15 |
A.C.G. Cap (Big), 30mm
90087-108-000
|
$5.86 $4.39 | ||
| 16 |
Plain Washer, 12.5*25*2.3
94105-1225023
|
$1.26 $0.94 | ||
| 17 |
Pan Phillips Bolt, 6*12
93500-06012
|
$0.50 $0.38 | ||
| 18 |
Wire Bracket 1
32962-152-000
|
$1.67 $1.26 | ||
| 19 |
Oil-Ring, 27*2
91327-120-000
|
$1.09 $0.82 | ||
| 20 |
Oil Ring, 13.8*2.5
91313-108-000
|
$1.26 $0.94 |
