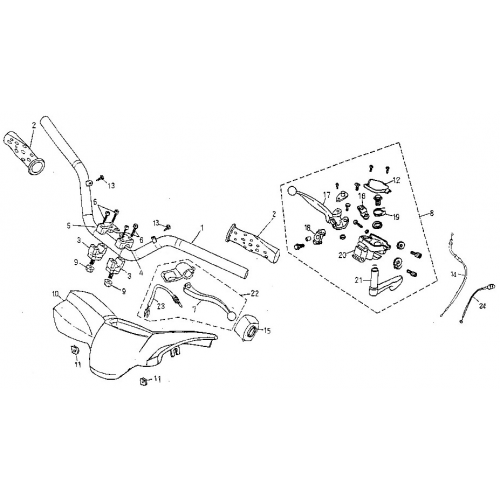

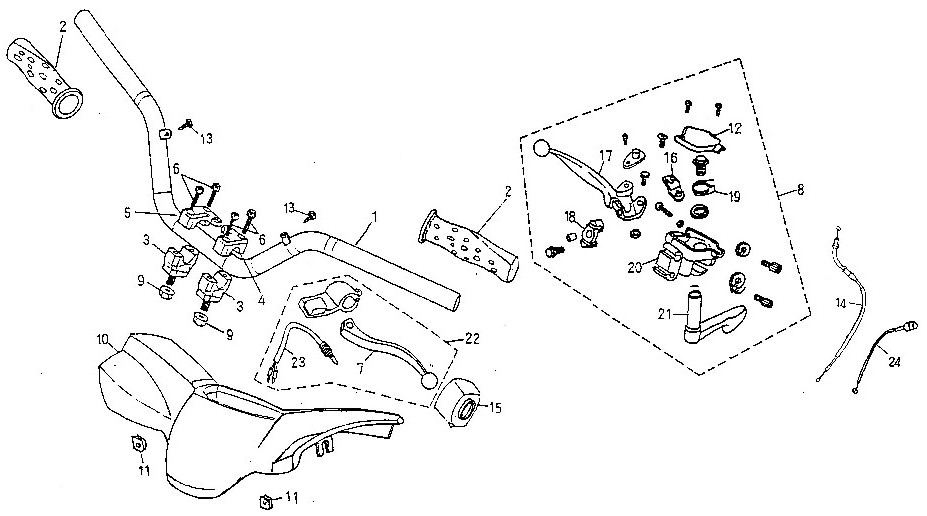

Handle Bar (Adly ATV 90Z2 4T (Gear Drive))
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Handle Bar(Rev.3)
53100-145-000
|
$36.56 | ||
| 2 |
Handle Grip Set
53166-155-000
|
$13.18 | ||
| 3 |
Handle Bar Bottom Clamp
53101-145-00A
|
$11.28 | ||
| 4 |
Left Handle Bar Clamp
53102-145-00A
|
$8.79 | ||
| 5 |
Right Handle Bar Clamp
53103-145-00A
|
$8.79 | ||
| 6 |
Hex Socket Bolt, 6*25
91000-06025B
|
$1.00 | ||
| 7 |
Left Lever
53178-145-000
|
$14.75 | ||
| 8 |
Adly ATV 90cc 4 Stroke Right Lever Assembly
53170-155-002
|
$85.01 | ||
| 9 |
Nylon Nut, M10*P1.25
90350-10000G
|
$0.67 | ||
| 10 |
Front Handle Bar Cover (Red, Green, Blue)
64211-152-000
|
$31.63 | ||
| 11 |
U Plate Nut, 5mm
90344-0500A
|
$1.17 | ||
| 12 |
Lever Body Cover(Adly)
53171-155-000
|
|||
| 13 |
Tapping Screw Truss Head Phillps, 5*16
93903-05016K
|
$0.72 | ||
| 14 |
Throttle Cable, ECO
17910-152-001
|
$29.00 | ||
| 15 |
Adly 90cc ATV Left Handle Switch Assembly
35200-145-001
|
|||
| 16 |
Throttle Cable Bracket
53174-155-000
|
$3.35 | ||
| 17 |
Right Lever
53175-155-000
|
$13.05 | ||
| 18 |
Cable Bracket
53173-145-000
|
$8.79 | ||
| 19 |
Throtte Lever Spring
53184-155-000
|
|||
| 20 |
Lever Bracket
53172-155-000
|
$15.82 |
