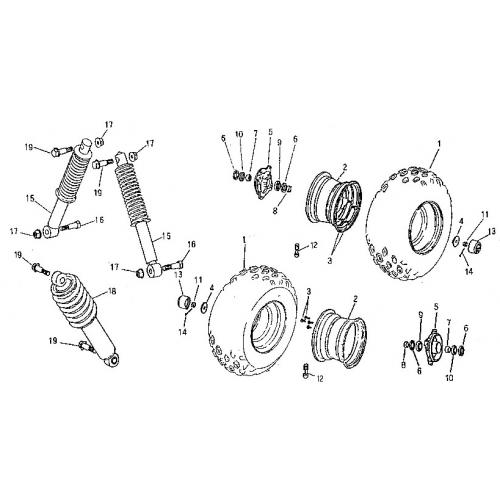

Front Wheel, Suspension (Adly ATV 90Z2 4T (Gear Drive))
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Front Tire 20x7-8
42711-146-00A
|
$64.00 $48.00 | ||
| 2 |
Rim, 8*5.5
42701-146-000
|
$72.69 $54.52 | ||
| 3 |
Hex Washer Face Bolt, 10*20
96000-10020-14B
|
$3.01 $2.26 | ||
| 4 |
Plain Washer, 12*40*4.5
94101-1240045C
|
$2.34 $1.76 | ||
| 5 |
Front Brake Drum(REV.3)
42710-145-0AB
|
$78.99 $59.24 | ||
| 6 |
Oil Seal, 22*35*7
96500-22357
|
$4.50 $3.38 | ||
| 7 |
Spacer Tube, 15*22*15
44620-145-000
|
$6.03 $4.52 | ||
| 8 |
Front Coller(Rev.1), 15*22*10
44311-145-000
|
$6.15 $4.61 | ||
| 9 |
Radial Ball Bearing, 6002Z
96100-6002Z
|
$11.98 $8.99 | ||
| 10 |
Radial Ball Bearing, 6003Z
96100-6003Z
|
$11.75 $8.81 | ||
| 11 |
Hex,Slotted Nut, 12mm
94051-12000-17C
|
$3.77 $2.82 | ||
| 12 |
Air Nozzle
42616-145-000
|
$4.18 $3.14 | ||
| 13 |
Rubber Cover, ADLY
42814-145-000
|
|||
| 14 |
Cotter Pin, 3*32
94201-30320B
|
$0.42 $0.31 | ||
| 15 |
Adly ATV 90cc 4 Stroke Front Shock
51400-152-000
|
$60.37 $45.28 | ||
| 16 |
Hex Bolt, 10*40
92000-10040-14G
|
$1.92 $1.44 | ||
| 17 |
Nylon Nut, M10*P1.25
90350-10000G
|
$0.67 $0.50 | ||
| 18 |
Rear Cushion(Rev.1)
52400-145-000
|
$97.33 $73.00 | ||
| 19 |
Hex Flange Bolt, M10*40
96000-10040-14G
|
$4.02 $3.01 |
