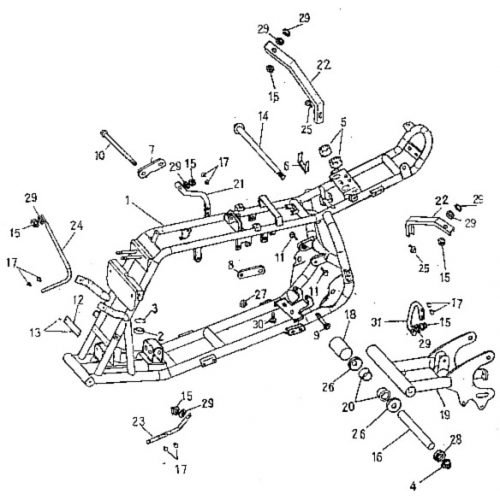

Frame Body (Adly ATV 90Z2 4T (Gear Drive))
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Frame Comp
50100-152-000
|
|||
| 2 |
Radial Ball Bearing, 6002ZZ
96100-6002ZZ
|
$11.98 $8.99 | ||
| 3 |
Internal Cir Clip, RTW-32
94512-3200R
|
$1.34 $1.00 | ||
| 4 |
Nylon Nut, M14
90350-14000G
|
$2.59 $1.95 | ||
| 5 |
Rubber
77211-145-001
|
$2.68 $2.01 | ||
| 6 |
Sponge Pad, 15*100*4
17505-145-000
|
$4.02 $3.01 | ||
| 7 |
R. Engine Fixed Plate
50353-152-000
|
|||
| 8 |
L. Engine Fixed Plate
50354-152-000
|
|||
| 9 |
Hex Washer Face Bolt, 8*110
96000-08110-14C
|
$2.68 $2.01 | ||
| 10 |
Hex Washer Face Bolt, 8*120
96000-08120-14C
|
$4.02 $3.01 | ||
| 11 |
Hex Washer Face Bolt, 8*36
96000-08036-12G
|
$2.34 $1.76 | ||
| 12 |
Frame No. Plate
50110-145-000
|
|||
| 13 |
Rivet, #4-3
90662-105-000
|
$0.42 $0.31 | ||
| 14 |
Hex Washer Face Bolt, 14*280
96000-14280-19C
|
$15.82 $11.86 | ||
| 15 |
Nut Nylon, 6mm
90350-06000C
|
|||
| 16 |
Swing Arm Spacer
52104-152-000
|
$11.72 $8.79 | ||
| 17 |
Hex Bolt, 6*14
92000-06014-10G
|
$1.00 $0.75 | ||
| 18 |
Rubber Sleeve, L=65mm ECO
52101-145-001
|
$8.79 $6.59 | ||
| 19 |
Swing Arm Ass'Y, M8
52100-152-002
|
$97.33 $73.00 | ||
| 20 |
Bush
52103-145-000
|
$5.30 $3.98 |
