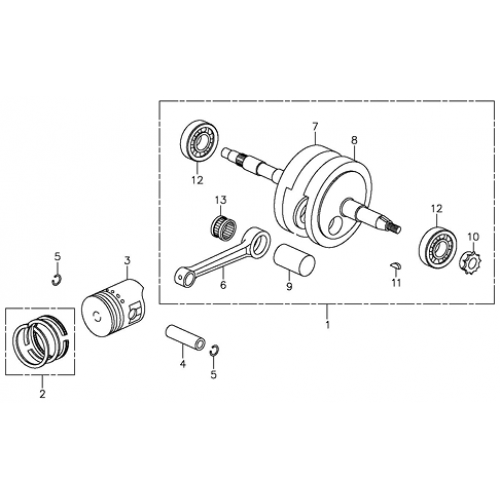

Crankshaft, Piston (Adly ATV 90Z2 4T (Gear Drive))
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Crankshaft Ass'Y
13000-152-001
|
$145.74 $109.30 | ||
| 2 |
Piston Ring Set
13011-152-000
|
$25.04 $18.78 | ||
| 3 |
Piston Comp.
13100-152-000
|
|||
| 4 |
Piston Pin, 12*15*38
13111-152-000
|
|||
| 5 |
Piston Pin Clip
13115-152-000
|
$0.33 $0.25 | ||
| 6 |
Crank Connecting Rod
13201-152-000
|
|||
| 7 |
Right Crank
13311-152-001
|
|||
| 8 |
Left Crank
13321-152-001
|
|||
| 9 |
Crank Pin
13381-152-000
|
|||
| 10 |
Timing Sprocket
14311-152-000
|
|||
| 11 |
Semicycle Key
90471-152-000
|
$2.26 $1.69 | ||
| 12 |
Radial Ball Bearing, 6304
96100-63040
|
$17.43 $13.07 | ||
| 13 |
Needle Bearing, 23.1*28.1*13.9
96200-232814
|
$16.47 $12.36 |
