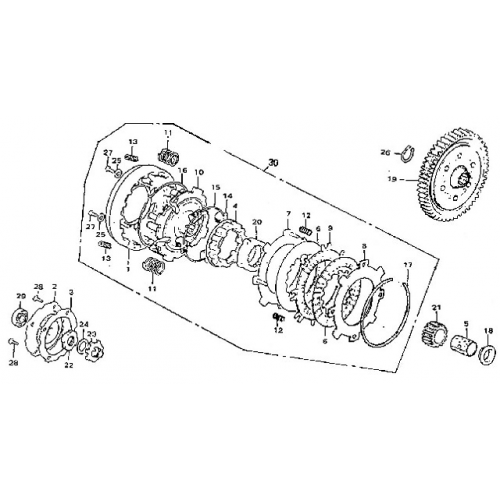

Clutch (Adly ATV 90Z2 4T (Gear Drive))
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Clutch Outer Comp
22100-152-000
|
|||
| 2 |
Clutch Outer Cover
22111-152-000
|
$12.52 $9.39 | ||
| 3 |
Clutch Outer Cover Gasket
22119-152-000
|
$1.67 $1.26 | ||
| 4 |
Clutch Center
22121-152-000
|
|||
| 5 |
Primary Grive Gear Guide
22125-152-000
|
$15.82 $11.86 | ||
| 6 |
Clutch Friction Disk A
22201-152-000
|
|||
| 7 |
Clutch Plate A
22311-152-000
|
|||
| 8 |
Clutch Plate B
22321-152-000
|
|||
| 9 |
Clutch Friction Disk B
22211-152-000
|
|||
| 10 |
Drive Plate
22350-152-000
|
|||
| 11 |
Clutch Spring
22401-152-000
|
|||
| 12 |
Clutch Free Spring
22411-152-000
|
|||
| 13 |
Clutch Damper Spring
22421-152-000
|
|||
| 14 |
Clutch Weight
22531-152-000
|
|||
| 15 |
Clutch Weight Center Ring
22535-152-000
|
|||
| 16 |
Clutch Weight Sropper Ring
22536-152-000
|
|||
| 17 |
Set Ring, 96*101.5*1.5
22901-152-000
|
|||
| 18 |
Collar, 17*28*8
96401-172808
|
$7.32 $5.49 | ||
| 19 |
Primary Driven Gear
23110-152-000
|
$44.12 $33.09 | ||
| 20 |
Driven Gear Outer
23112-152-000
|
