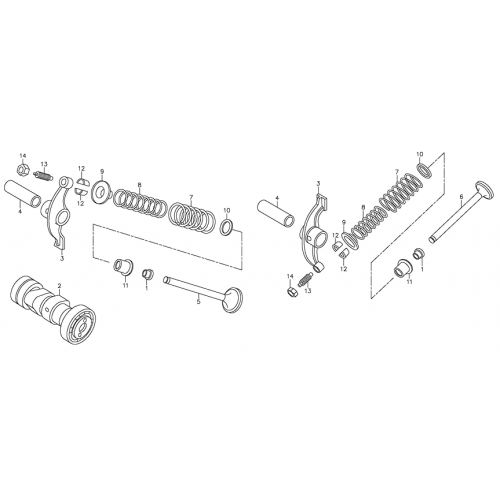

Camshaft, Valve (Adly ATV 90Z2 4T (Gear Drive))
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 | Valve Stem Seal 12209-152-000 | $4.18 $3.14 | ||
| 2 | Cam Shaft 14100-152-000 | $56.73 $42.55 | ||
| 3 | Valve Rocker Arm 14431-152-000 | $15.82 $11.86 | ||
| 4 | Rocker Arm Shaft 14451-152-000 | $8.79 $6.59 | ||
| 5 | Inlet Valve(Rev.1) 14711-152-000 | $19.77 $14.83 | ||
| 6 | Exhaust Valve(Rev.1) 14721-152-000 | $25.04 $18.78 | ||
| 7 | Valve Outer Spring 14751-152-000 | $5.86 $4.39 | ||
| 8 | Valve Inner Spring 14761-152-000 | $4.18 $3.14 | ||
| 9 | Valve Spring Retainer 14771-152-000 | $7.32 $5.49 | ||
| 10 | Valve Spring Inner Seat 14776-152-000 | $2.51 $1.88 | ||
| 11 | Valve Stem Seal Cap 12210-152-000 | $3.35 $2.51 | ||
| 12 | Valve Cotter 14781-152-000 | $5.13 $3.84 | ||
| 13 | Valve Gap Adjusting Screw 90012-120-000 | $5.86 $4.39 | ||
| 14 | Valve Gap Adjusting Nut 90206-120-000 | $3.35 $2.51 |
