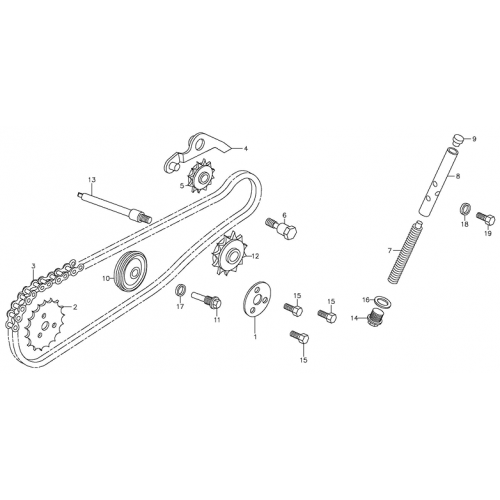

Cam Chain, Tensioner (Adly ATV 90Z2 4T (Gear Drive))
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Cam Shaft Washer
14101-152-000
|
$2.09 $1.57 | ||
| 2 |
Cam Sprocket
14321-152-000
|
$13.18 $9.88 | ||
| 3 |
Cam Chain
14401-152-000
|
$32.95 $24.71 | ||
| 4 |
Cam Chain Tensioner
14500-152-000
|
$19.77 $14.83 | ||
| 5 |
Cam Chain Tensioner Roller
14502-152-000
|
$7.32 $5.49 | ||
| 6 |
Cam Chain Tensioner Pivot
14531-152-000
|
$2.09 $1.57 | ||
| 7 |
Cam Chain Tension Arm Spring
14530-152-000
|
$3.35 $2.51 | ||
| 8 |
Tensioner Push Rod
14564-152-000
|
$23.72 $17.79 | ||
| 9 |
Tensioner Push Rod Head
14562-152-000
|
$3.35 $2.51 | ||
| 10 |
Cam Chain Roller Guide
14610-152-000
|
$7.32 $5.49 | ||
| 11 |
Roller Pin Guide
14615-152-000
|
$4.18 $3.14 | ||
| 12 |
Cam Chain Sprocket
14670-152-000
|
$21.09 $15.82 | ||
| 13 |
Cam Chain Sprocket Spindle
14675-152-000
|
$10.98 $8.24 | ||
| 14 |
Hex Washer Face Bolt, 14*11.5
96000-14011-14C
|
$4.18 $3.14 | ||
| 15 |
Hex Bolt, 5*12
92000-05012-09
|
$0.50 $0.38 | ||
| 16 |
Plain Washer, 14*20*1.6
94104-1420016
|
$2.09 $1.57 | ||
| 17 |
Plain Washer, 8*14*1.5
94104-0814015
|
$1.67 $1.26 | ||
| 18 |
Sealing Washer, 6.5*12*1
94103-0612010
|
$2.09 $1.57 | ||
| 19 |
Hex Flange Bolt, 6*16
96000-06016-10B
|
$0.67 $0.50 | ||
| 20 |
Plain Washer, 10*13*1
94101-1013010
|
$0.33 $0.25 |
