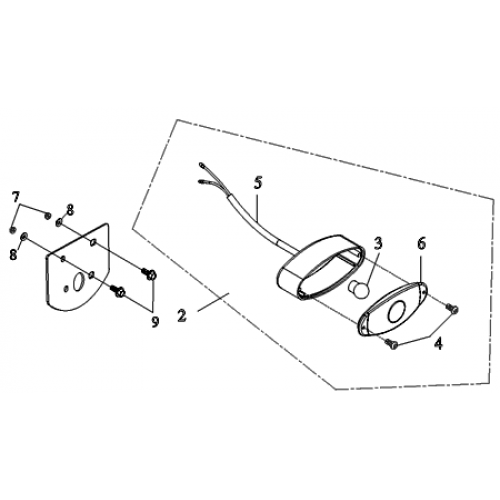

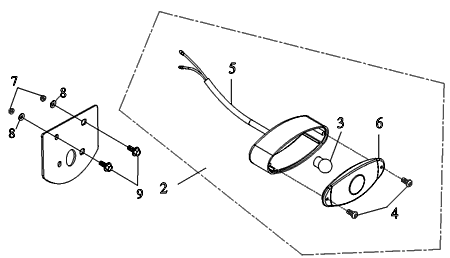

Tail Light (Adly ATV 90RV 4T)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Tail Light Ass'Y (E-Mark,Sae)
33700-145-000
|
$45.99 | ||
| 2 |
Tail Light Lens
33702-145-000
|
|||
| 3 |
Rear Light Base
33711-145-000
|
$31.63 | ||
| 4 |
Tail Light Bulb (E-Mark), 12V 21/5W
34906-105-00A
|
$7.32 | ||
| 5 |
Tail Light Fix Bracket
50357-145-00A
|
$7.32 | ||
| 6 |
Pan Phillips Bolt, 4*10
93500-04010
|
$0.59 | ||
| 7 |
Plain Washer, 6.5*15*1
94101-0615010B
|
$0.50 | ||
| 8 |
Hex Washer Face Bolt, 6*12
96000-06012-10G
|
$1.34 |
