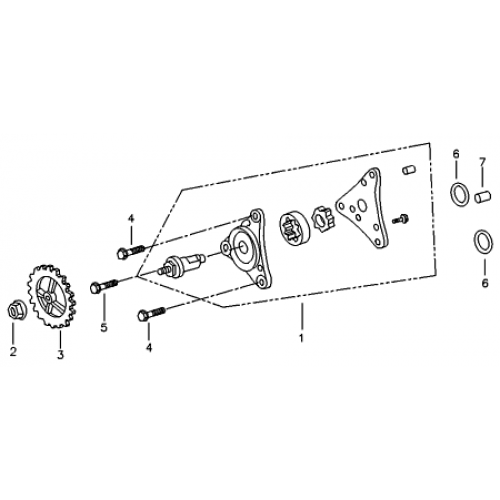

Oil Pump (Adly ATV 90RV 4T)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Oil Pump
15100-175-000
|
$32.95 | ||
| 2 |
Hex Flange Nut, 6mm
94050-06000C
|
|||
| 3 |
Oil Pump Drive Gear
15150-133-000
|
$11.72 | ||
| 4 |
Hex Washer Face Bolt, 6*20
96000-06020-08C
|
$0.84 | ||
| 5 |
Hex Flange Bolt, 6*25
96000-06025-08C
|
$1.17 | ||
| 6 |
Oil-Ring, 9.5*1.6
91309-120-00A
|
$1.67 | ||
| 7 |
Dowel Pin, 8*12
94301-08120
|
$1.34 |
