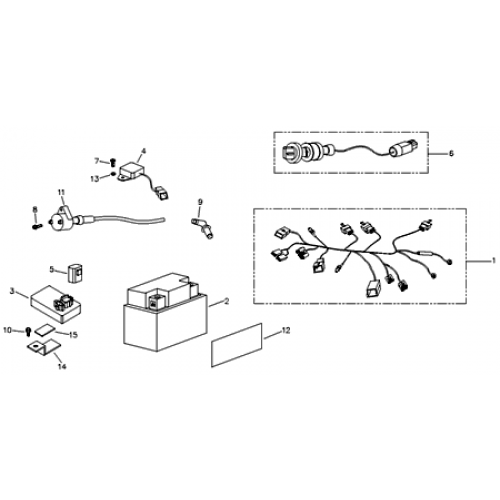

Electrical Parts (Adly ATV 90RV 4T)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Main Wire Harness
32100-213-000
|
|||
| 2 |
Battery, 12V
31500-166-000
|
$38.20 $28.65 | ||
| 3 |
C.D.I Unit, 8500rpm
30410-175-00A
|
$107.22 $80.42 | ||
| 4 |
Adly Regulator Rectifier
31600-110-000
|
$44.76 $33.57 | ||
| 5 |
Starting Relay
38501-152-000
|
$36.56 $27.42 | ||
| 6 |
Main Switch Ass'Y, 200mm
35100-166-00A
|
$44.99 $33.74 | ||
| 7 |
Pan Phillips Bolt, 5*12
93500-05012B
|
$0.84 $0.63 | ||
| 8 |
Hex Washer Face Bolt, 5*24
96000-05024-08C
|
$2.72 $2.04 | ||
| 9 |
Spark Plug Cap, 10 kOm
30700-168-000
|
$10.25 $7.69 | ||
| 10 |
Hex Washer Face Bolt, 6*12
96000-06012-10G
|
$1.34 $1.00 | ||
| 11 |
High Tension Coil, L=310mm
30510-175-000
|
$46.25 $34.69 | ||
| 12 |
Decal, Warning Battery Proposition
87723-116-000
|
$0.42 $0.31 | ||
| 13 |
Spring Washer , 6*12*1.5
94111-0612015B
|
$0.50 $0.38 | ||
| 14 |
C.D.I Fixed Bracket
54317-175-000
|
$4.18 $3.14 | ||
| 15 |
Sponge Of C.D.I, 30*45*4
30414-175-000
|
$0.42 $0.31 | ||
| 16 |
Resistor Comp
35400-168-000
|
$15.82 $11.86 | ||
| 17 |
Main Switch Bracket
35102-145-000
|
$2.72 $2.04 |
