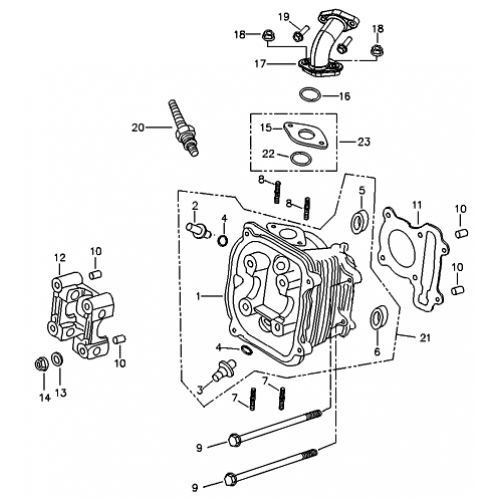

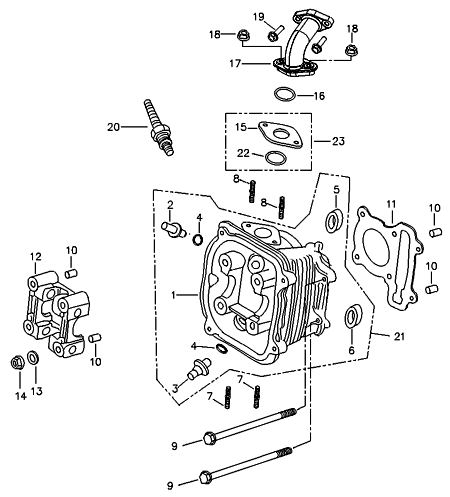

Cylinder Head (Adly ATV 90RV 4T)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Cylinder Head
12201-175-000
|
$132.37 | ||
| 2 |
In. Guide Valve
12204-175-000
|
$11.60 | ||
| 3 |
Ex. Guide Valve
12206-175-000
|
|||
| 4 |
Oil-Ring, 9.5*1.6
91309-120-00A
|
$1.67 | ||
| 5 |
Intake Valve Seat
12225-175-000
|
|||
| 6 |
Exhaust Valve Seat
12226-175-000
|
$8.79 | ||
| 7 |
Stud Bolt, 6*32
91001-06032C
|
$3.35 | ||
| 8 |
Stud Bolt, 6*40
91001-06040C
|
$1.67 | ||
| 9 |
Hex Washer Face Bolt, 6*85
96000-06085-08C
|
$2.34 | ||
| 10 |
Dowel Pin, 7.1*8*14
94301-08140A
|
$1.34 | ||
| 11 |
Cylinder Head Gasket
12251-175-000
|
$12.75 | ||
| 12 |
Camshaft Holder
12211-133-000
|
$21.09 | ||
| 13 |
Plain Washer, 7*14*2.5
94101-0714025C
|
$1.00 | ||
| 14 |
Hex Flange Nut With Serration, 7MM
94050-07000C
|
$1.00 | ||
| 15 |
Carburetor Insulator
16213-175-000
|
$5.86 | ||
| 16 |
Oil Ring, 22.0*2.0
91322-175-000
|
$1.34 | ||
| 17 |
Intake Mainfold
17100-175-00A
|
$36.56 | ||
| 18 |
Hex Flange Nut, 6mm
94050-06000C
|
$0.84 | ||
| 19 |
Hex Washer Face Bolt, 6*20
96000-06020-08C
|
$0.84 | ||
| 20 |
Anti-Resistance Spark Plug, CR7HSA
98076-120-00A
|
$6.03 |
