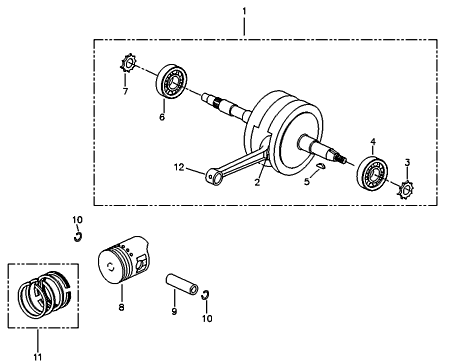

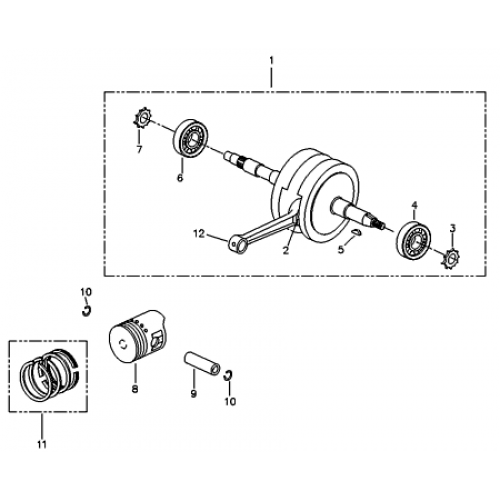

Crankshaft, Piston (Adly ATV 90RV 4T)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Crankshaft Ass'Y
13000-133-000
|
$145.74 | ||
| 2 |
Needle Bearing, 28.1*23.1*13.8
96200-282313
|
$22.73 | ||
| 3 |
Oil Pump Drive Gear, 17T
14322-120-000
|
$13.84 | ||
| 4 |
Radial Ball Bearing, 42*17*13
96100-SC03A39
|
|||
| 5 |
Semicycle Key, 3*16.3
90471-133-000
|
|||
| 6 |
Radial Ball Bearing, 47*20*14
96100-TMB204
|
$38.32 | ||
| 7 |
Timing Gear, 17T
14311-133-000
|
$14.50 | ||
| 8 |
Piston
13100-175-000
|
$48.99 | ||
| 9 |
Piston Pin
13111-175-000
|
$7.55 | ||
| 10 |
Clip Piston Pin, 1.0*14
13115-101-000
|
$0.50 | ||
| 11 |
Piston Ring Set, 50MM
13011-175-000
|
$32.95 | ||
| 12 |
Crank Connecting Rod
13201-133-000
|
$30.58 |
