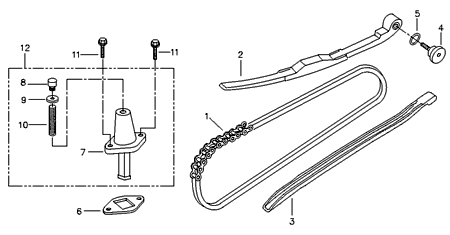

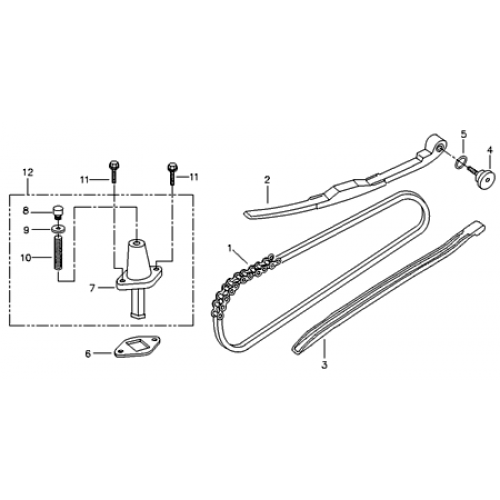

Chain, Cam Lifter Tensioner (Adly ATV 90RV 4T)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Cam Chain, 82
14401-133-000
|
$36.56 | ||
| 2 |
Cam Chain Tensioner
14550-133-000
|
$23.72 | ||
| 3 |
Guide Comp Cam Chain
14500-133-000
|
$12.52 | ||
| 4 |
Pivot,Cam Chain Tensioner
14535-120-000
|
$5.86 | ||
| 5 |
Oil-Ring, 15.2*1.5
91315-120-000
|
$2.09 | ||
| 6 |
Tensioner Lifter Gasket
14523-133-000
|
$3.35 | ||
| 7 |
Tensioner Lifter
14521-133-000
|
$31.63 | ||
| 8 |
Adjuser Plug
14552-133-000
|
|||
| 9 |
Plain Washer, 6*16*1.5
94101-0616015
|
$0.59 | ||
| 10 |
Cam Chain Adjuster Spring
14553-133-000
|
|||
| 11 |
Hex Washer Face Bolt, 6*18
96000-06018-08C
|
$1.00 | ||
| 12 |
Tensioner Lifter Ass'Y
14520-133-000
|
$23.99 |
