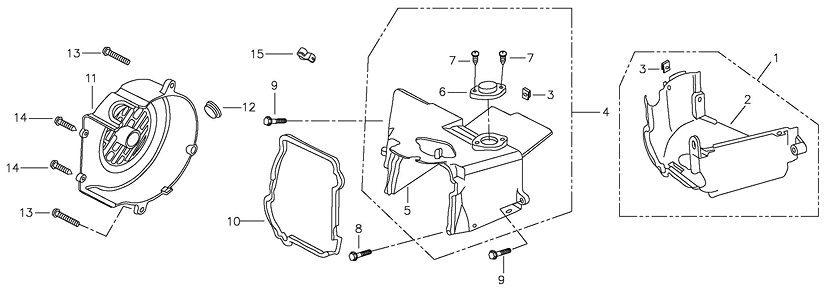

Fan Cover, Shroud (Adly ATV 90II 4T (CVT))
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Shroud A Ass'Y
19624-133-000
|
$15.82 | ||
| 2 |
Shroud A
19621-133-000
|
$11.60 | ||
| 3 |
U Plate Nut, 6mm
90344-0600A
|
$2.68 | ||
| 4 |
Shroud B Ass'Y
19626-133-000
|
$13.18 | ||
| 5 |
Shroud B
19623-133-000
|
$12.30 | ||
| 6 |
Tensioner Lifter Cover, X
19633-133-000
|
$1.67 | ||
| 7 |
Hex Truss Head Tapping Screw, 5*12
93904-05012K
|
$0.67 | ||
| 8 |
Hex Flange Bolt
96000-06016-08C
|
$0.67 | ||
| 9 |
Hex Washer Face Bolt, 6*20
96000-06020-08C
|
$0.84 | ||
| 10 |
Shroud Seal
19625-133-000
|
$10.98 | ||
| 11 |
Generator Cover
19610-133-000
|
$12.39 | ||
| 12 |
Rubber Bung, X
17529-120-000
|
$2.01 | ||
| 13 |
Hex Flange Bolt, 6*25
96000-06025-08C
|
$1.17 | ||
| 14 |
Hex Truss Head Tapping Screw, 5*16
93904-05016K
|
$0.59 | ||
| 15 |
Clamper Carb,Drain Tube
11351-120-000
|
$1.59 |
