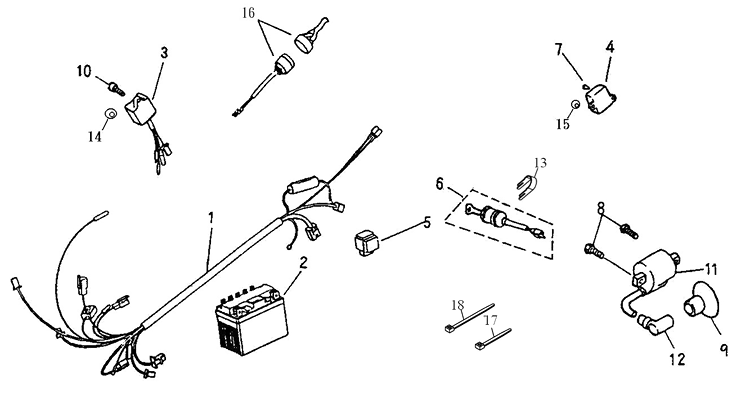

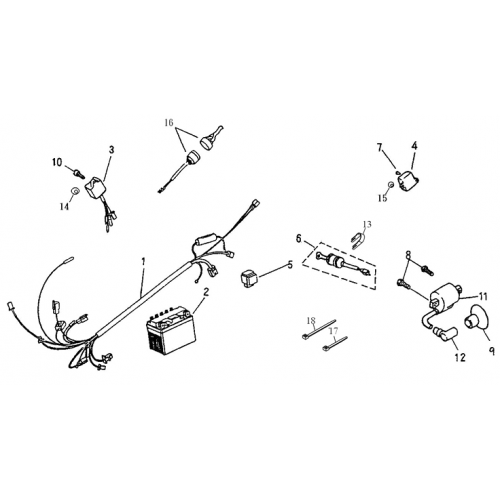

Electrical Parts (Adly ATV 50cc 2T)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Main Wire Harness (W/ Oil Indicator)
32100-145-00G
|
$58.99 $44.24 | ||
| 2 |
Battery BTX4L-BS
31500-116-000
|
$36.99 $27.74 | ||
| 3 |
C.D.I Unit, 6600RPM
30410-145-0AA
|
$49.12 $36.84 | ||
| 4 |
Adly Regulator Rectifier
31600-110-000
|
$44.76 $33.57 | ||
| 5 |
Starting Relay
38501-105-0A1
|
$40.41 $30.31 | ||
| 6 |
Main Switch Assy with key
35100-145-00B
|
$44.99 $33.74 | ||
| 7 |
Pan Phillips Bolt, 5*12
93500-05012B
|
$0.84 $0.63 | ||
| 8 |
Hex Flange Bolt, M6*20
96000-06020-10C
|
$1.84 $1.38 | ||
| 9 |
Rubber Cap
30605-116-000
|
$4.25 $3.19 | ||
| 10 |
Pan Phillips Bolt, 6*15
93500-06015B
|
$0.67 $0.50 | ||
| 11 |
High Tension Coil, L=300
30510-110-000
|
$44.12 $33.09 | ||
| 12 |
Spark Plug Cap, 10KOM
30700-101-001
|
$6.25 $4.69 | ||
| 13 |
Main Switch Bracket
35102-145-000
|
$2.72 $2.04 | ||
| 14 |
Spring Washer , 6*12*1.5
94111-0612015B
|
$0.50 $0.38 | ||
| 15 |
Spring Washer, 5*9*1.2
94111-0509012B
|
$0.42 $0.31 | ||
| 16 |
Safety Switch(Rev.1)
31800-145-000
|
$16.47 $12.36 | ||
| 17 |
Cable Tie, 4.8*200m/m
90669-101-000
|
$0.67 $0.50 | ||
| 18 |
Cable Tie, 4.8*250m/m
90669-101-00A
|
$0.50 $0.38 |
